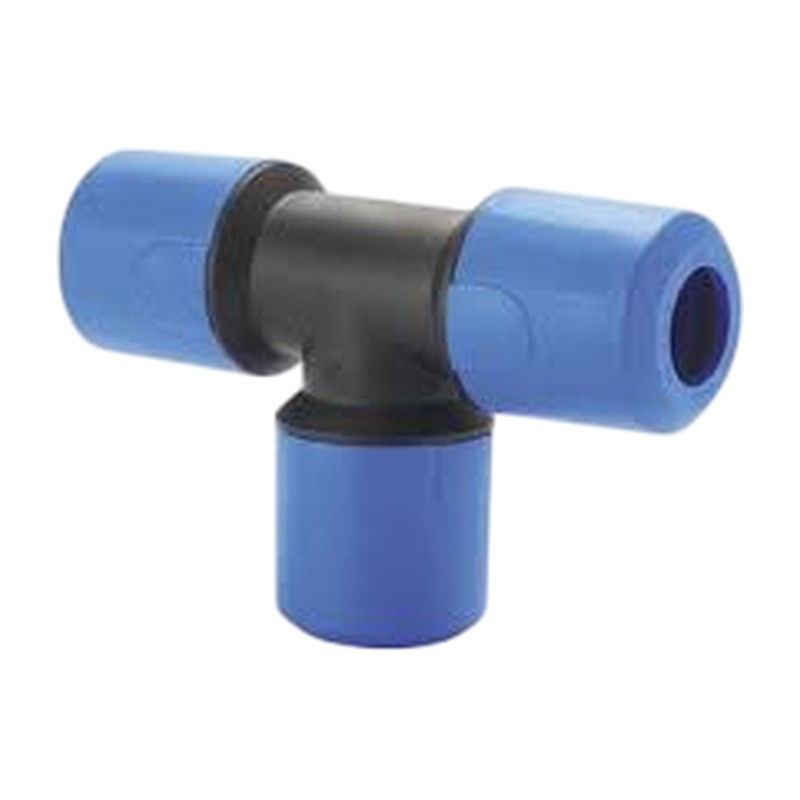

JG Speedfit MDPE Tee 20mm to 32mm

To take a branch off a blue water main, the JG Speedfit MDPE tee is the fitting to use. All three ends are Push-Fit, and the tee comes in equal and reducing sizes.

JG Speedfit MDPE tee sizes and uses

Equal tees suit branching a 25mm supply into two 25mm runs. Reducing tees let you take a smaller branch off, such as a 20mm feed to an outside tap from a 25mm main. On a farm or a new build plot, tees split one incoming supply between several buildings.

• Equal: 20mm, 25mm and 32mm
• Reducing: 25mm x 25mm x 20mm and 32mm x 32mm x 25mm
• Also listed: 32mm x 25mm x 32mm
• Push-Fit, cold water only

Lay out the pipe so the tee sits without strain on any leg. Fit inserts, push each pipe to the stop and pull back to check the grip. Put a stop tap on the branch if you will ever need to isolate it on its own. Test the whole lot before the trench is filled.

Picking up MDPE tees in Glasgow

Elbows and couplers are all in the MDPE and alkathene fittings range.

Plumb Parts runs its counter from 555 South Street, Glasgow G14 0QX, Mon-Fri 8am-5pm and Sat-Sun 8am-1pm. Ordering online is fine as well.

Specification

• Brand: JG Speedfit
• Range: MDPE cold water services fittings
• Maker code: UG201B (20mm), UG202B (25mm), UG203B (32mm)
• Connection: Push Fit with stainless steel collet teeth, pipe insert needed in each MDPE end
• Sizes: 20mm, 25mm and 32mm equal; 25mm x 25mm x 20mm, 32mm x 32mm x 25mm and 32mm x 25mm x 32mm
• Standard or approval: Water Regulations Advisory Scheme approved (JG Speedfit technical guide)
• Max pressure: 16 bar at 20°C
• Max temperature: Cold water only, rated at 20°C
• Suitable for: Blue MDPE (PE80) cold water service pipe, above or below ground

Common Questions

How do I read the reducing tee sizes?

They read run, run, branch. So 25mm x 25mm x 20mm is a 25mm run with a 20mm branch, and 32mm x 25mm x 32mm has a 25mm run end.

Should the branch have its own stop tap?

Yes, if you will ever need to isolate it separately. A stop tap close to the tee saves shutting off the whole supply.

Can one tee split a supply to two buildings?

Yes, that is a common job on farms and plots. Size the pipe for the total flow both buildings will need.

Datasheets

• JG Speedfit Cold Water Equal Tee Data Sheet (PDF)
• JG Speedfit Cold Water Reducing Tee Data Sheet (PDF)
