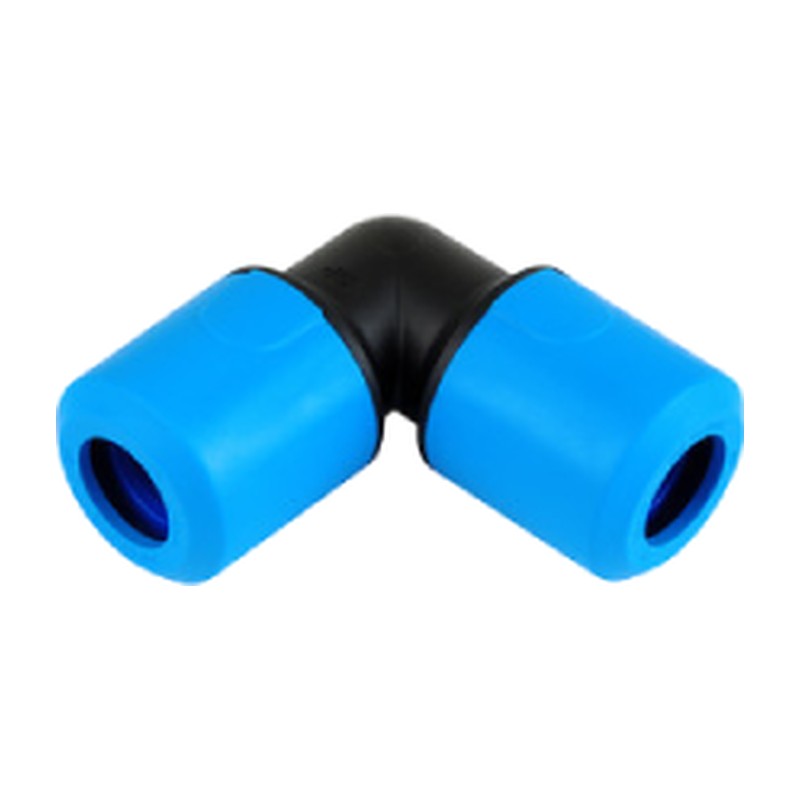

JG Speedfit MDPE Elbow 20mm to 32mm

When a buried supply needs to turn a corner, a JG Speedfit MDPE elbow does it in one Push-Fit fitting. Blue MDPE pipe will bend, but not tightly, so an elbow is the neat answer at a wall or a tight change of direction.

Using an MDPE elbow on a water supply

Typical jobs are bringing a supply up out of the ground at the house wall, or turning along a boundary. The elbow keeps the pipe from kinking, which would restrict flow and weaken the pipe. These are Push-Fit, so there are no nuts to tighten in a muddy trench. The collet grips the pipe with stainless steel teeth, and the joint can be undone later if needed.

• Sizes: 20mm x 20mm, 25mm x 25mm and 32mm x 32mm
• 90 degree Push-Fit elbow
• For blue MDPE cold water pipe
• Joints can be taken apart again

Fit a pipe insert in each pipe end first. Cut the pipe square with proper cutters and clean it off. Push it in past the collet and O-ring until it stops, and give it a tug to check. Bed the fitting in sand when it goes underground.

Collecting MDPE elbows in Glasgow

See the rest of our MDPE and alkathene fittings for tees, couplers and stop taps.

Call at Plumb Parts, 555 South Street, Glasgow G14 0QX, during Mon-Fri 8am-5pm or Sat-Sun 8am-1pm. The website is open for orders too.

Specification

• Brand: JG Speedfit
• Range: MDPE cold water services fittings
• Maker code: UG303B
• Connection: Push Fit with stainless steel collet teeth, pipe insert needed in each MDPE end
• Sizes: 20mm x 20mm, 25mm x 25mm and 32mm x 32mm
• Standard or approval: Water Regulations Advisory Scheme approved (JG Speedfit technical guide)
• Max pressure: 16 bar at 20°C
• Max temperature: Cold water only, rated at 20°C
• Suitable for: Blue MDPE (PE80) cold water service pipe, above or below ground

Common Questions

Can I bend MDPE instead of using an elbow?

MDPE will take a gentle bend, but a tight turn kinks it. Use an elbow at walls and sharp corners.

Can a Push Fit elbow be buried?

Yes, JG Speedfit MDPE fittings are made for use below ground. Bed it in sand and test before backfilling.

Can the elbow be taken apart?

Yes. With the supply off and drained, hold the collet square against the elbow and draw the pipe back out. Look over the pipe end and insert for scoring before it goes back in.

Datasheets

• JG Speedfit Cold Water Equal Elbow Data Sheet (PDF)
