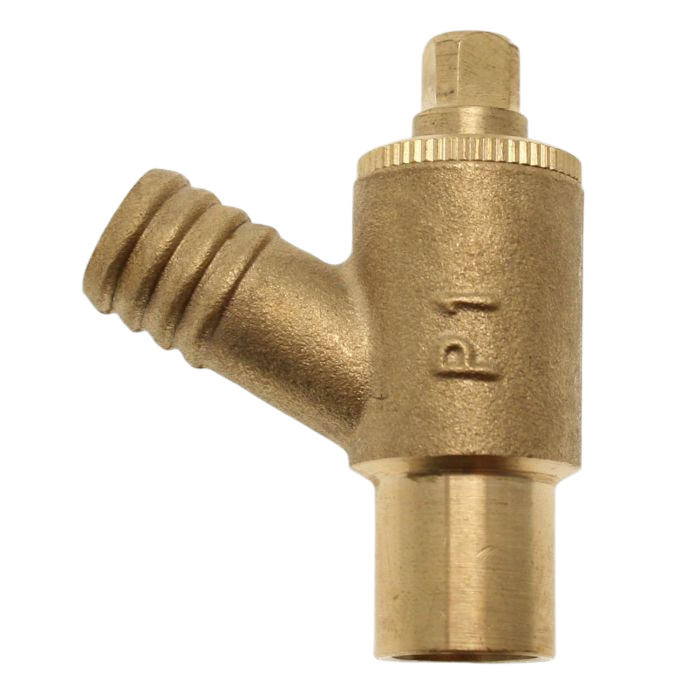

MT DRAW OFF COCK TYPE A CAPILLARY DZR

Made in DZR brass, the MT Draw Off Cock Type A Capillary DZR is a drain valve that solders onto 15mm copper pipe. DZR stands for dezincification resistant. Some water slowly pulls the zinc out of ordinary brass, leaving it weak and porous, and DZR brass is made to stand up to that.

Why pick the MT Draw Off Cock Type A Capillary DZR

Choose DZR where a fitting will sit in water for years, for example on a cold main, under a cylinder or on a buried or boxed-in section. It is the same drain cock in use as the standard capillary version, just in a tougher alloy for those conditions.

Solder it in at the lowest point of the pipework, with the outlet where a hose can reach. Clean and flux both surfaces, heat evenly and keep the flame mainly on the joint, not the spindle. Once cool, check the spindle turns freely.

• Size: 15mm
• DZR brass body
• Capillary end for soldering to copper
• Hose outlet, spindle opened with a key or spanner

Threaded and standard brass versions are also in Valves & Control Devices.

DZR fittings in Glasgow

You can buy one from Plumb Parts at 555 South Street, Glasgow G14 0QX. The counter is open Mon-Fri 8am-5pm plus Sat-Sun 8am-1pm, and online orders are always taken.

Specification

• Material: DZR brass
• Connection: capillary pipe end for soldering, hose outlet
• Sizes: 15mm
• Suitable for: a soldered drain point where water can attack ordinary brass

Common Questions

Why pay extra for a DZR draw off cock?

Where the cock sits full of water for years, such as on a cold main or under a cylinder, DZR brass keeps its strength instead of going porous.

Is the capillary joint the same as an End Feed fitting?

Yes, the pipe end is a plain solder socket, so you clean, flux and feed in solder wire just as with End Feed.

Can the DZR drain cock be fitted on a cold main?

Yes, that is one of the places DZR is meant for. Fit it at a low point with the outlet where a hose can reach.
