Pegler XPress Press-Fit Gas Copper Equal Tee 15mm to 108mm

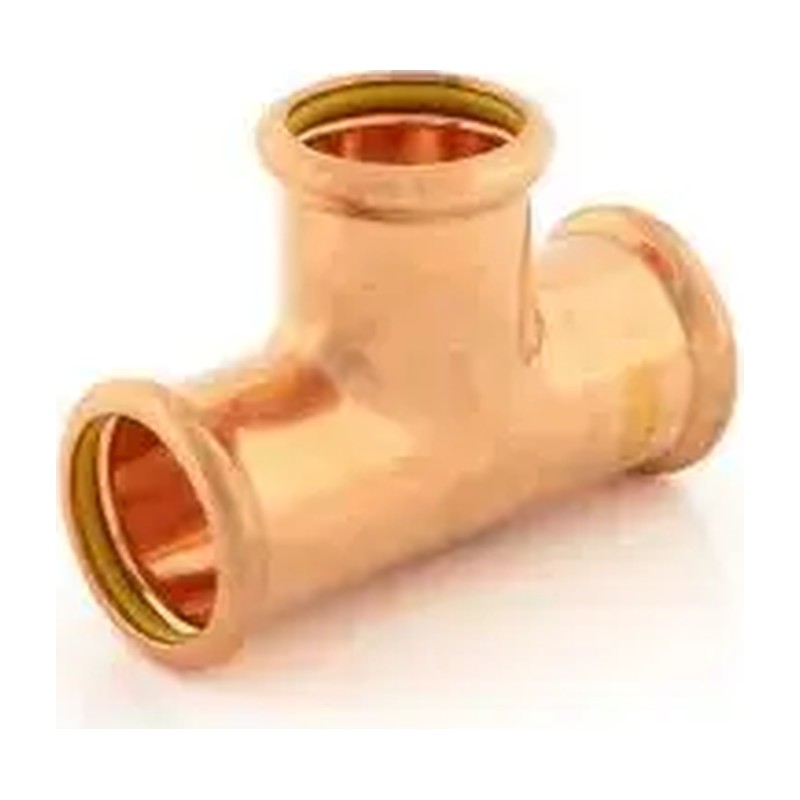

Pegler XPress Press-Fit Gas Copper Equal Tee

This is a gas equal tee with all three ends the same size. Sizes are 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 66.7mm, 76.1mm, 88.9mm and 108mm.

It suits teeing a new gas appliance off an existing copper run. Keep gas and water Xpress fittings separate: the gas pattern has yellow HNBR seals and a gas marking on the body.

The Pegler XPress Press-Fit Fittings we hold at Plumb Parts cover 15mm to 108mm.

The same system also covers these fitting types: Copper Straight Couplers, Copper Reducing Couplers, Copper Straight Coupling Slips, Copper Straight Female Connectors, Copper Straight Male Connectors, Copper Male Reducers, Copper Female Adaptors, Copper Male Adaptors, Copper Union Coupling, Copper Equal Elbows, Copper Reduced Elbows, Copper Street Elbows, Copper Knuckle Elbows, Copper Male Elbows, Copper Female Elbows, Copper Back plate Elbows, Copper Long Pattern BackPlate Elbows, Copper 90deg Bends, Copper 45 deg Elbows, Copper Obtuse Street Elbows, Copper Crossover, Copper Partial Crossovers, Copper Full Crossovers, Copper Equal Tees, Copper Reduced Branch tees, Copper One End Reduced Tees, Copper One End Reduced And End Branch reduced Tees, Copper Both End Reduced Tees, Copper Female Branch Tees, Copper Multi Port Female Branch Tees, Copper Stop Ends, Copper Unions, Copper Straight Male Union Connectors, Copper Straight Female Union Connectors.

Whether the job is domestic, commercial or industrial, Xpress copper gives a quick joint without a blowtorch, so the whole installation can be done with one system.

Points worth knowing

• Gas rating: -20°C to +70°C
• Gas rating: 5 bar on external above-ground pipework, 1 bar inside buildings
• With Leak Before Press, a fitting left unpressed will leak on test, so it cannot be missed
• Carries the BSI Kitemark to BS 8537:2010
• Pressing takes less time and labour than conventional jointing
• Cold jointing with no naked flame, so there is no hot works permit or insurance to arrange
• Approved by numerous British and international bodies

Full gas limits are in the Specification below.

Specification

• Brand: Pegler XPress
• Range: Xpress Copper Gas
• Maker code: SG24; article numbers 39850 (15mm), 39851 (22mm), 39852 (28mm), 39853 (35mm), 39854 (42mm), 39855 (54mm), 39361 (66.7mm), 39362 (76.1mm), 39364 (108mm)
• Material: Copper
• Connection: Press Fit ends with yellow HNBR gas seals
• Sizes: 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 66.7mm, 76.1mm, 88.9mm and 108mm
• Standard or approval: BS EN 1254-7 (BSI Kitemark KM 789225)
• Max pressure: 5 bar on external above-ground pipework; 1 bar inside buildings subject to fire regulations
• Suitable for: Gas pipework on hard and half-hard copper tube, fitted by a Gas Safe registered engineer
• Max temperature: -20°C to +70°C

Common Questions

Can a gas tee be used on water pipe?

Keep the ranges apart. Water work uses the Xpress copper water fittings, gas work the gas ones.

Which equal tee sizes are listed for gas?

From 15mm up to 108mm, including the larger commercial sizes.

What marks it out as a gas fitting?

Its yellow HNBR seals and the gas marking on the body.
