Pegler XPress SSG25 Gas Stainless Steel Reduced Branch Tee 22mm to 108mm

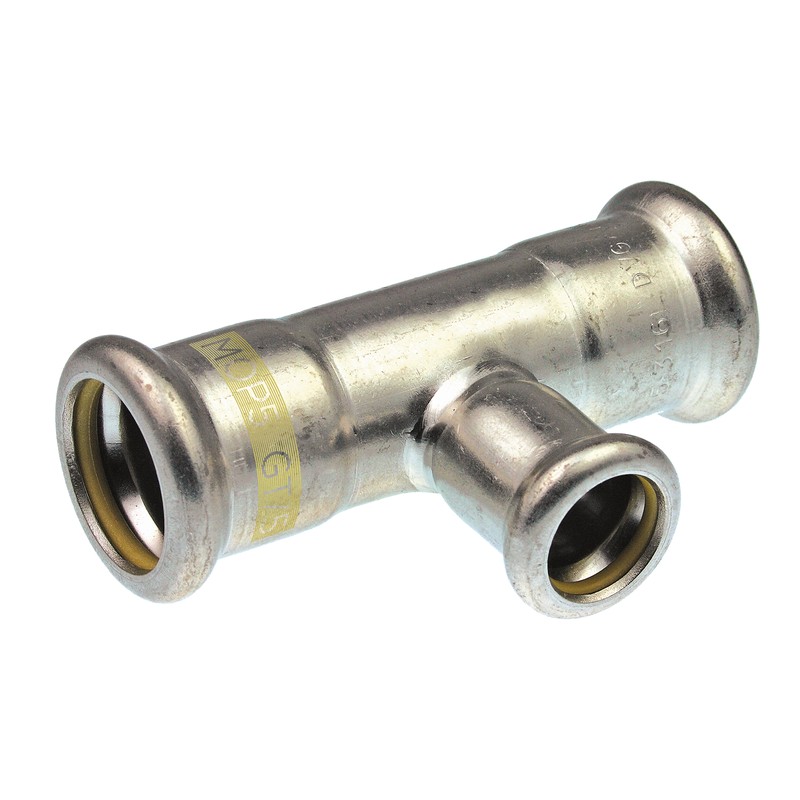

The Pegler XPress 316 Stainless Steel Gas Reduced Branch Tee, maker code SSG25, is a tee with a press socket on all three ends and a smaller branch for the XPress Stainless Gas press fit system. We list it in 22mm x 22mm x 15mm, 28mm x 28mm x 15mm, 28mm x 28mm x 22mm, 35mm x 35mm x 15mm, 35mm x 35mm x 22mm, 35mm x 35mm x 28mm, 42mm x 42mm x 22mm, 42mm x 42mm x 28mm, 42mm x 42mm x 35mm, 54mm x 54mm x 22mm, 54mm x 54mm x 28mm, 54mm x 54mm x 35mm, 54mm x 54mm x 42mm, 76.1mm x 76.1mm x 22mm, 76.1mm x 76.1mm x 28mm, 76.1mm x 76.1mm x 35mm, 76.1mm x 76.1mm x 42mm, 76.1mm x 76.1mm x 54mm, 88.9mm x 88.9mm x 22mm, 88.9mm x 88.9mm x 28mm, 88.9mm x 88.9mm x 35mm, 88.9mm x 88.9mm x 42mm, 88.9mm x 88.9mm x 54mm, 108mm x 108mm x 22mm, 108mm x 108mm x 28mm, 108mm x 108mm x 35mm, 108mm x 108mm x 42mm, 108mm x 108mm x 54mm for gas engineers and mechanical contractors on commercial and industrial gas work in Glasgow and the West of Scotland.

Use it to take a smaller branch off a larger gas main. Sizes are listed run x run x branch. Pegler make it in 316L stainless steel (1.4404) with a yellow HNBR O-ring and yellow marking, for natural gas where copper is not suitable, for example where hydrogen sulphide is present. Every size, the XPress 316 Stainless Steel Gas Reduced Branch Tee 108mm x 108mm x 54mm included, can be bought online or over our South Street counter.

XPress uses the M press profile and needs no flame or heat. Mark the insertion depth on the pipe before you push it in, so you know it is fully home before you press.

Couplings, elbows and tees to go with it are in our Pegler XPress 316 stainless steel gas press fit range.

Specification

• Brand: Pegler XPress (VSH, Aalberts IPS)
• Range: XPress Stainless Gas
• Maker code: SSG25; article numbers 11873 (22mm x 22mm x 15mm), 11875 (28mm x 28mm x 15mm), 11877 (28mm x 28mm x 22mm), 11878 (35mm x 35mm x 15mm), 11880 (35mm x 35mm x 22mm), 11881 (35mm x 35mm x 28mm), 11882 (42mm x 42mm x 22mm), 11883 (42mm x 42mm x 28mm), 11884 (42mm x 42mm x 35mm), 11885 (54mm x 54mm x 22mm), 11886 (54mm x 54mm x 28mm), 11887 (54mm x 54mm x 35mm), 11888 (54mm x 54mm x 42mm), 20528 (76.1mm x 76.1mm x 22mm), 20529 (76.1mm x 76.1mm x 28mm), 20530 (76.1mm x 76.1mm x 35mm), 20531 (76.1mm x 76.1mm x 42mm), 20532 (76.1mm x 76.1mm x 54mm), 20533 (88.9mm x 88.9mm x 22mm), 20534 (88.9mm x 88.9mm x 28mm), 20535 (88.9mm x 88.9mm x 35mm), 20536 (88.9mm x 88.9mm x 42mm), 20537 (88.9mm x 88.9mm x 54mm), 20538 (108mm x 108mm x 22mm), 20539 (108mm x 108mm x 28mm), 20540 (108mm x 108mm x 35mm), 20541 (108mm x 108mm x 42mm), 20542 (108mm x 108mm x 54mm)
• Type: Reduced Branch Tee
• Material: 316 stainless steel, grade 316L (1.4404)
• Seal: Yellow HNBR O-ring, M press profile
• Sizes: 22mm x 22mm x 15mm, 28mm x 28mm x 15mm, 28mm x 28mm x 22mm, 35mm x 35mm x 15mm, 35mm x 35mm x 22mm, 35mm x 35mm x 28mm, 42mm x 42mm x 22mm, 42mm x 42mm x 28mm, 42mm x 42mm x 35mm, 54mm x 54mm x 22mm, 54mm x 54mm x 28mm, 54mm x 54mm x 35mm, 54mm x 54mm x 42mm, 76.1mm x 76.1mm x 22mm, 76.1mm x 76.1mm x 28mm, 76.1mm x 76.1mm x 35mm, 76.1mm x 76.1mm x 42mm, 76.1mm x 76.1mm x 54mm, 88.9mm x 88.9mm x 22mm, 88.9mm x 88.9mm x 28mm, 88.9mm x 88.9mm x 35mm, 88.9mm x 88.9mm x 42mm, 88.9mm x 88.9mm x 54mm, 108mm x 108mm x 22mm, 108mm x 108mm x 28mm, 108mm x 108mm x 35mm, 108mm x 108mm x 42mm, 108mm x 108mm x 54mm
• Max pressure: 5 bar (PN5)
• Temperature: -20°C to +70°C
• Approvals: BSI Kitemark, DVGW Gas, ÖVGW Gas, SVGW Gas, ARGB-KVBG
• Suitable for: Natural gas on XPress 316 stainless steel pipe

Common Questions

How are the reduced tee sizes listed? Run x run x branch. So 28mm x 28mm x 15mm is a 28mm main with a 15mm branch.

Is this 304 or 316 stainless steel? 316. Pegler make XPress Stainless Gas fittings in 316L stainless steel (1.4404).

How can I tell a gas fitting from a water one? The gas fittings have a yellow O-ring and yellow marking on the body. Never put a water fitting with a black EPDM ring on a gas line.

Is XPress Stainless Gas approved for gas? Yes. Pegler list it for natural gas at up to 5 bar, with the BSI Kitemark among its approvals. All gas work must be done and tested by a Gas Safe registered engineer.

Do you have the XPress 316 Stainless Steel Gas Reduced Branch Tee 108mm x 108mm x 54mm in stock in Glasgow? Yes. Every size shows In Stock and can be collected from our counter.
