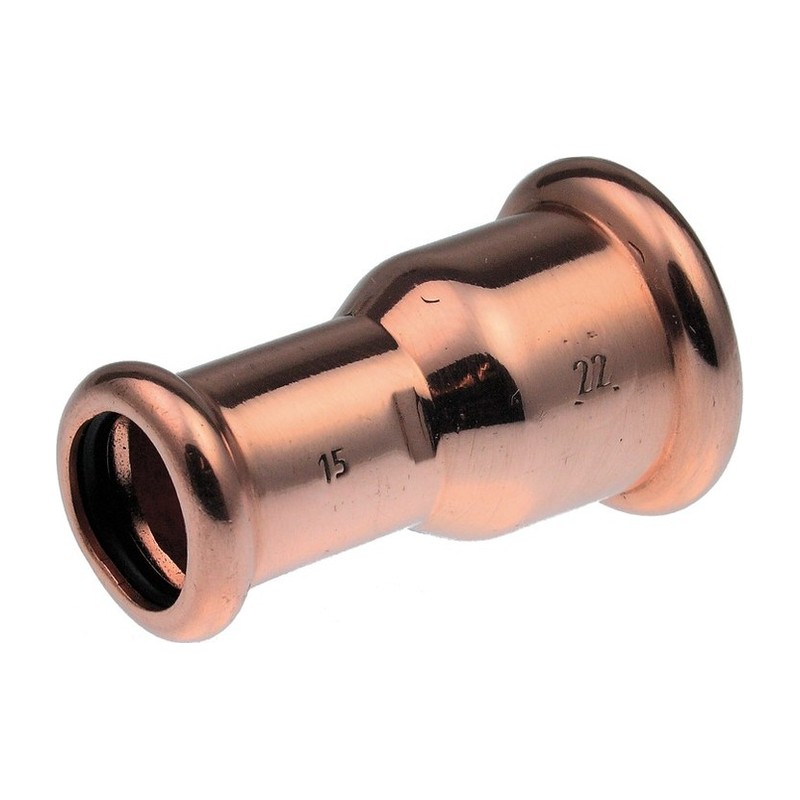

Pegler XPress Press-Fit Copper Reducing Coupler 15mm to 54mm

Xpress Press-Fit Copper Reducing COUPLER

Pegler XPress Press-Fit Copper Reducing Coupler is used to connect 2 pipes or tubes with different diameters at 180 deg.

Pipe reducers and connectors are used in pipe installations where there is a need to reduce the pipe size to a smaller diameter.

Common uses for a reducing coupler are when there’s a change in flow rate in the system or new pipe work is being installed.

Sizes

Pegler Xpress Reducing Coupling sizes are available in 15mm, 22mm, 28mm, 35mm, 42mm and 54mm.

At Plumb Parts our Pegler XPress Copper Fittings are available in the following variations:

• Pegler XPress Copper Fittings
• Pegler XPress Copper Gas Fittings

Xpress Press System

Pegler XPress Copper Reducing Coupling is a pipe pressing system you can press into action anywhere thus it offers a wide range of jointing materials and seal rings to cover every eventuality while providing a specialist solution for all applications.
No matter what the installation speed, safety, flexibility, and cost efficiency are of the highest priority Pegler offers a completely flexible, reliable solution and a seal you can be totally sure and confident of.
These fittings can be fixed wet with no draining needed and there is no cooling down required, it cuts down on installation time and downtime and is fully WRAS approved.
The fitting and pipe are pressed once the pipe has been inserted to the required insertion depth, ensuring a safe, dependable, and long-lasting connection.
And thanks to installer-friendly features such as pressing indicators to identify materials and leak paths in the seal rings, you can press on quickly and easily with maintenance too.

Industry Sectors

Water
Drinking water is our most valuable resource and installers are responsible for
ensuring that good quality water gets to the user. Pegler XPress Copper
and Stainless Steel ensure safe potable water with a fast, reliable, standard-compliant installation.
Gas
Gas applications require a safe connection for such volatile media and fittings, pipes
must comply with specific requirements for gas. Pegler XPress Copper Gas and
Stainless Steel Gas has all the necessary approvals for natural, liquefied, and several
technical gases ensuring a safe, certified installation.
Air
Compressed air applications require an airtight seal that can operate at a suitable
pressure for the situation. Pegler XPress Stainless Steel and Copper are for use on
all compressed air installations and Pegler XPress Carbon Steel is for use with dry
compressed air requirements; all providing a reliable seal with a fast, safe installation.
Heating
Heating applications require a reliable supply of heat and for this, must rely on the
transport of the hot water from the heating system to radiators and panel heaters
with maximum heat resistance and the lowest possible flow resistance. Pegler XPress
Xpress Copper, Stainless Steel, and Carbon Steel provide a solution with high
safety characteristics and optimised hydraulics.
Cooling
Chilled water and refrigeration applications require a safe solution for
carrying water, gases, and other cooling media to the air-handling unit
to then distribute through either an air conditioning unit or chiller.
Pegler XPress Copper, Stainless Steel, and Carbon Steel are
suitable materials for such application, providing a tried, tested
and a trusted seal.

Our Range of Pegler XPress Copper Fittings includes.

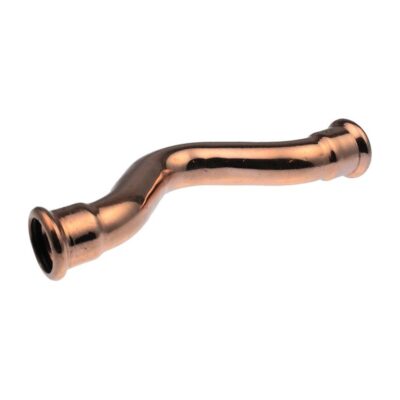

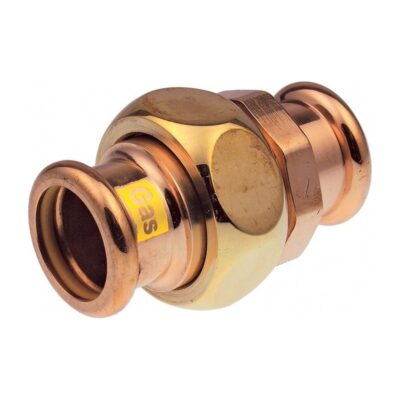

Reducers, Bends, Tees, Male Adaptors, Female Adaptors, Pipe Bridges & Crossovers, Gas Couplings, Gas Reducers, Gas Bends, Gas Tees

• BSI Kitemark approved (BS 8537:2010)
• Temperature rating from -20°C to 110°C
• Pressure rating 16 bar across the temperature range
• The unique Leak Before Press feature ensures any unpressed fittings are identified upon testing.
• Wide range of British and International approvals
• The rapid jointing technique ensures time and labour saving compared to traditional jointing methods.
• Heat-free jointing – no hot works permit or insurance required
• The chrome-plated range available for visible pipework

Pegler XPress Press-Fit Copper Reducing Coupler and Reducers are available at Plumb Parts Plumbers Merchants in Glasgow – sizes run from 22mm x 15mm to 54mm x 42mm.

Specification

• Brand: Pegler XPress
• Range: Xpress Copper (water)
• Maker code: S1R; article numbers 38061 (16mm x 15mm), 38064 (22mm x 15mm), 38065 (28mm x 15mm), 38066 (28mm x 22mm), 38067 (35mm x 28mm), 38068 (42mm x 35mm), 38069 (54mm x 42mm)
• Material: Copper
• Connection: Press Fit ends with EPDM O rings
• Sizes: 16mm x 15mm, 22mm x 15mm, 28mm x 15mm, 28mm x 22mm, 35mm x 28mm, 42mm x 35mm and 54mm x 42mm
• Standard or approval: BS EN 1254-7 (BSI Kitemark KM 789225)
• Max pressure: 16 bar
• Suitable for: Water services on hard and half-hard copper tube
• Max temperature: -20°C to +110°C

Common Questions

Where would I use a reducing coupler?

To join two copper tubes of different sizes in a straight run, such as 28mm to 22mm as a main drops in size.

Is 16mm x 15mm a real size?

A 16mm option shows on the listing, but 16mm is not an Xpress copper size. Please check with us before ordering it.

Can one jaw press both ends?

No. Each end is pressed with the jaw for its own size, so have both to hand.

Datasheets

• Pegler XPress S1R Product Datasheet (PDF)
• VSH XPress Installation Instructions (PDF)
