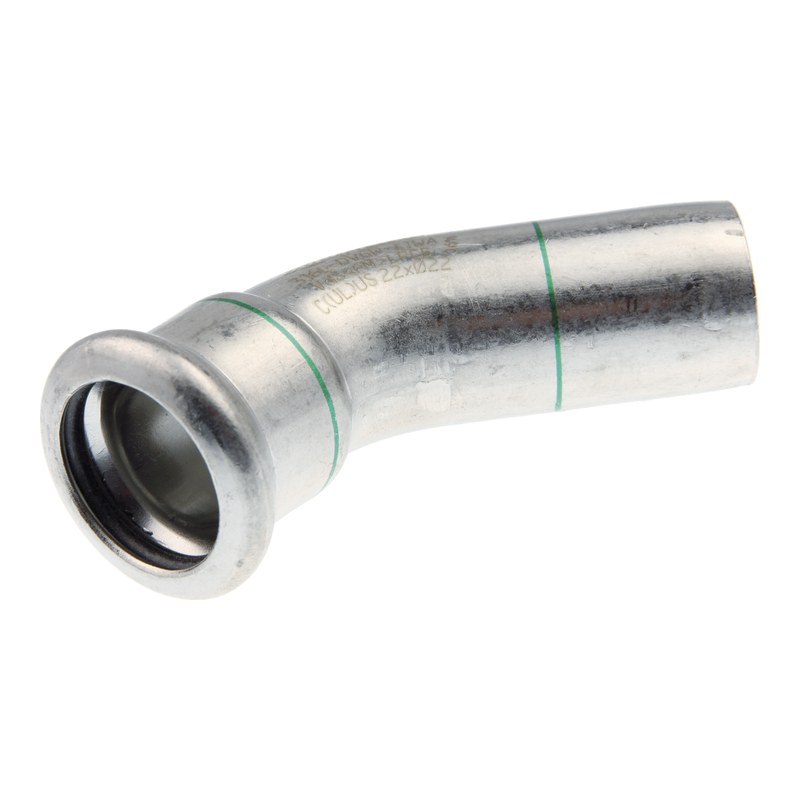

Pegler XPress SS21S Stainless Steel Street Elbow 45 Degree 15mm to 54mm

The Pegler XPress 316 Stainless Steel Street Elbow 45 Degree, maker code SS21S, is a 45 degree obtuse street elbow with a press socket on one end and a male spigot on the other for the XPress Stainless press fit system. We list it in 15mm, 22mm, 28mm, 35mm, 42mm, 54mm for plumbers and mechanical contractors on commercial water and heating work in Glasgow and the West of Scotland.

The spigot end goes straight into another fitting, so two of them make a tight offset. It is made of 316L stainless steel (1.4404) with an EPDM sealing ring, so it suits drinking water, heating, chilled water and compressed air. Every size, the XPress 316 Stainless Steel Street Elbow 45 Degree 54mm included, can be bought online or over our South Street counter.

XPress uses the M press profile. Mark the insertion depth on the tube before you push it in, so you know it is fully home before you press.

Elbows, tees and couplings to go with it are in our Pegler XPress 316 stainless steel press fit range.

Specification

• Brand: Pegler XPress (VSH, Aalberts IPS)
• Range: XPress Stainless
• Maker code: SS21S; article numbers 11611 (15mm), 11613 (22mm), 11614 (28mm), 11615 (35mm), 11616 (42mm), 11617 (54mm)
• Type: Street Elbow 45 Degree
• Material: 316 stainless steel, grade 316L (1.4404)
• Seal: EPDM sealing ring, M press profile
• Sizes: 15mm, 22mm, 28mm, 35mm, 42mm, 54mm
• Max pressure: 16 bar (PN16)
• Suitable for: Drinking water, heating, chilled water and compressed air

Common Questions

What is the difference between the SS21S and the SS21 elbow? The SS21 has a press socket on both ends. The SS21S street elbow has one press socket and one male spigot that goes into another fitting.

Is this 304 or 316 stainless steel? 316. Pegler make XPress Stainless fittings in 316L stainless steel (1.4404).

Do you have the XPress 316 Stainless Steel Street Elbow 45 Degree 54mm in stock in Glasgow? Yes. Every size shows In Stock and can be collected from our counter.

Which press jaws do I need for XPress Stainless? XPress uses the M profile, so use M profile jaws of the right size on a compatible press tool.
