Pegler Yorkshire SSG15 Xpress Gas Stainless Steel Backplate Elbow 15mm

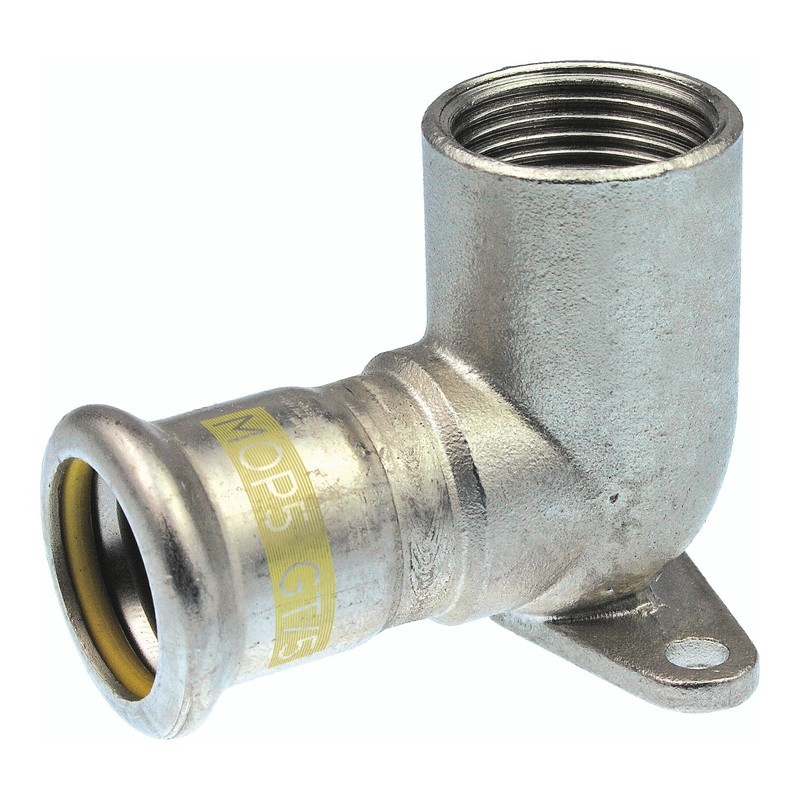

The Xpress Gas 316 Stainless Steel Backplate Elbow, Aalberts code SSG15, gives a solid, fixed gas point on an XPress stainless system, and we sell it in 15mm x 1/2″ for gas engineers fitting cooker and appliance points. It has a 15mm press end, a 90° turn and a 1/2″ female Rp thread on a wall plate.

Fix the plate to the wall or a noggin, then screw the appliance connection or cooker hose fitting straight in. It is 316L stainless with a yellow HNBR O-ring and yellow marking.

Fix the backplate firmly before connecting anything, so the press joint never takes the strain. Use a gas-rated sealant on the male thread, mark the depth and press with M-profile jaws. If a cooker hose goes here, fit the restraint the appliance instructions call for. Related fittings are in our XPress Gas 316 stainless steel press fit range.

Specification

• Brand: Pegler Yorkshire (VSH, Aalberts IPS)
• Range: XPress Stainless Gas
• Maker code: SSG15: 11957
• Material: Stainless steel 316L (1.4404); yellow HNBR O-ring
• Connection: Press (M profile) x female Rp thread on wall plate, 90°
• Sizes: 15mm x 1/2″
• Standard/approval: BSI Kitemark and DVGW Gas among the listed approvals
• Max pressure: 5 bar (PN5)
• Max temperature: 70°C (range -20°C to +70°C)
• Suitable for: Natural gas on XPress 316 stainless steel pipe

Common Questions

What is a backplate elbow for? It gives a fixed, screwed-down outlet for an appliance, so the hose or connector has something solid to pull against. The Xpress Gas 316 Stainless Steel Backplate Elbow takes a 1/2″ male fitting.

Is XPress Stainless Gas approved for gas? Yes, Aalberts list it for natural gas at up to 5 bar, with the BSI Kitemark among its approvals. All gas work must be done and tested by a Gas Safe registered engineer.

Which jaws do XPress stainless fittings need? They use the M press profile, so press them with M-profile jaws or collars of the right size. Check your tool covers the size before you start.

Why use stainless rather than copper for gas? Aalberts make it for sites where hydrogen sulphide rules copper out, and where a tougher pipe is wanted. No flame or heat is needed to make the joints.
