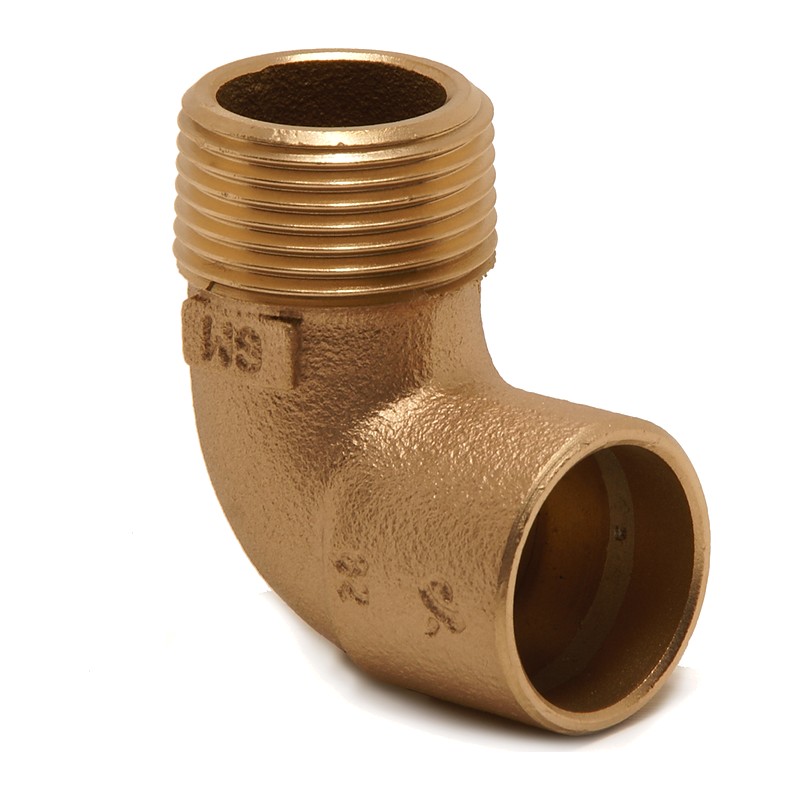

Solder Ring Male Elbow 90 Deg 15mm to 28mm
Price range: £3.79 through £11.52 inc VAT ( Price range: £3.16 through £9.60 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
The Solder Ring Male Elbow 90 Deg bends copper pipe through a right angle onto a female threaded port, in 15mm x 1/2″, 22mm x 3/4″ and 28mm x 1″. From Plumb Parts, our Glasgow plumbers merchant.
| SKU | Thumbnail | Sizes | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| SRME9015D |
|
15mm x 1/2" | £3.79 inc VAT (£3.16 ex VAT) |
-
+
|
£3.79 inc VAT | ||
| SRME9022E |
|
22mm x 3/4" | £3.82 inc VAT (£3.18 ex VAT) |
-
+
|
£3.82 inc VAT | ||
| SRME9028F |
|
28mm x 1" | £11.52 inc VAT (£9.60 ex VAT) |
-
+
|
£11.52 inc VAT |
The Solder Ring Male Elbow 90 Deg has a Solder Ring socket for copper on one end and a male thread on the other, set at a right angle. The threaded end screws into a female tapping.
Fitting a Solder Ring Male Elbow 90 Deg
Female ports turn up on cylinders, boilers, manifolds, pumps and valves. When the pipe has to arrive from the side, this elbow screws into the port and turns the copper away in one piece. The 15mm x 1/2″ suits most water connections, and the 22mm x 3/4″ and 28mm x 1″ suit heating and cylinder work.
- Sizes: 15mm x 1/2″, 22mm x 3/4″ and 28mm x 1″
- Right angle elbow
- Male thread on one end
- Solder Ring socket for copper on the other
Make the threaded joint first, with PTFE or jointing paste on the male thread. Tighten until it points the way you want the pipe to go. Then solder the copper in, using a damp rag on the body nearest the thread to keep heat off the seal. Female threaded versions and couplings sit in our Solder Ring Fittings.
Male elbows at our Glasgow counter
Male elbows are available from Plumb Parts, 555 South Street, Glasgow G14 0QX. Monday to Friday 8am to 5pm and Saturday and Sunday 8am to 1pm. Online ordering is there as well.
Specification
- Connection: Solder Ring socket and male thread, at a right angle
- Sizes: 15mm x 1/2″, 22mm x 3/4″ and 28mm x 1″
- Suitable for: Leaving a female tapping with the pipe at 90 degrees
Common Questions
How do I line up a male elbow on a thread?
Seal the thread and screw it in until it is firm. If it is not facing the right way, carry on tightening to the next point it lines up, rather than backing it off.
Can I solder the elbow after it is screwed in?
Yes, if the female part can take the heat. Keep the flame on the elbow body near the socket, not on the thread.
Which sizes match which pipe?
15mm x 1/2″ for small feeds, 22mm x 3/4″ for main runs, and 28mm x 1″ for larger flows. The thread size must match the female tapping you are going into.
Plumb Parts Glasgow
555 South Street
Glasgow
G14 0QX
Tel: 0141 404 5128
Open 7 days
Mon to Fri 8am to 5pm
Sat and Sun 8am to 1pm
| Sizes |
15mm x 1/2" ,22mm x 3/4" ,28mm x 1" |
|---|
Only logged in customers who have purchased this product may leave a review.
Related products

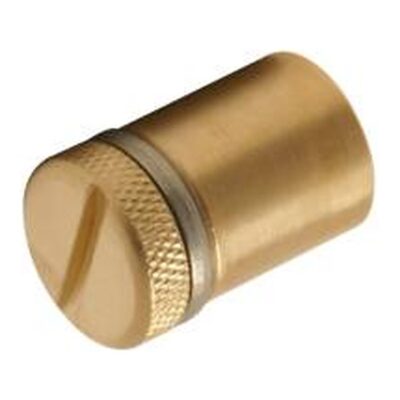

Solder Ring Air Vent Plug 15mm

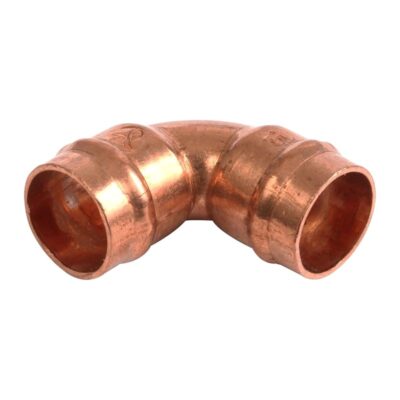

Solder Ring Elbow 90 Deg 8mm to 54mm
Price range: £0.50 through £18.07 inc VAT ( Price range: £0.42 through £15.06 ex VAT)

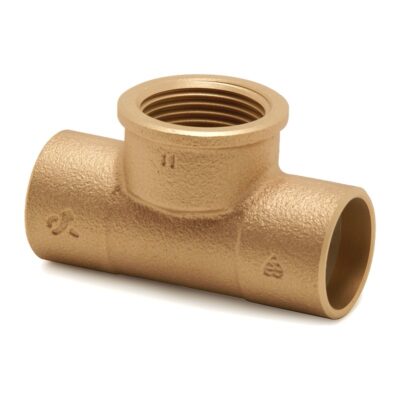

Solder Ring Female Tee 15mm to 28mm
