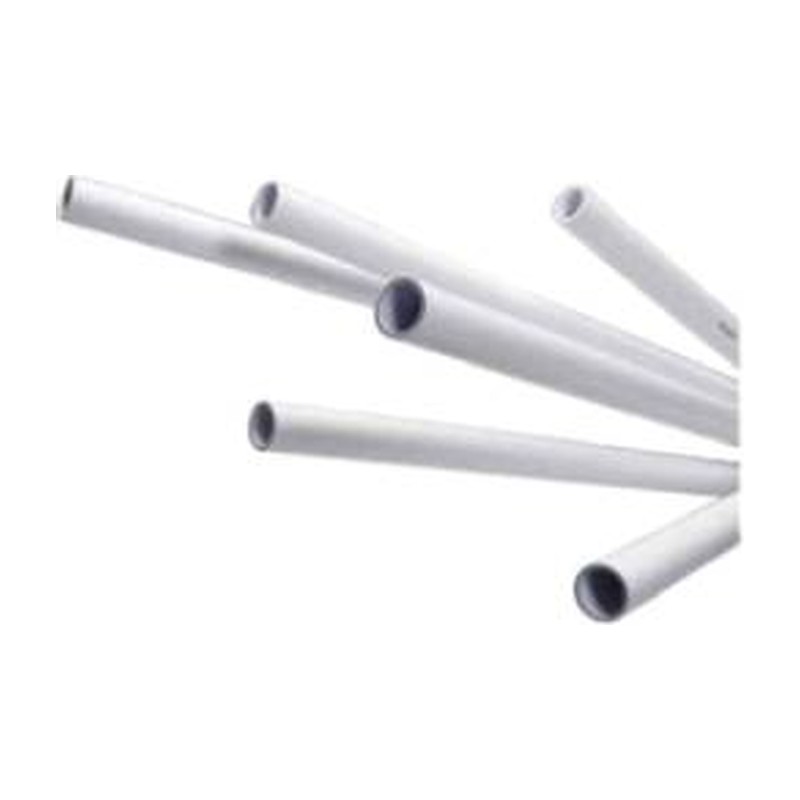

Speedfit PEX Barrier Pipe 28mm

For runs that need more flow than 22mm can give, Speedfit PEX Barrier Pipe 28mm is the biggest of the three barrier pipe sizes in this range.

What Speedfit PEX Barrier Pipe 28mm is for

28mm turns up on bigger heating systems, primary circuits and larger cold water feeds in bigger houses or light commercial jobs. Like the smaller sizes, it’s John Guest’s PE-X pipe with an oxygen barrier, made to BS 7291 Class S, for hot and cold water and central heating. It joins with JG Speedfit Push Fit fittings.

• 28mm x 1m
• 28mm x 2m
• 28mm x 3m

At 28mm the pipe is fairly rigid, so don’t expect it to bend round tight corners like 15mm. Plan for elbows. A 28mm Speedfit insert goes in every cut end before jointing. Use a cutter big enough for 28mm, keep the end square and clean, and push it fully into the fitting. Support it well along the run. Check our Speedfit pipe section for 28mm inserts and fittings, plus 15mm and 22mm pipe for the branches.

Ordering 28mm plastic pipe in Glasgow

Visit Plumb Parts, 555 South Street, Glasgow G14 0QX. Hours: Mon-Fri 8am-5pm and Sat-Sun 8am-1pm. You can also order online.

Specification

• Brand: JG Speedfit
• Material: PEX (cross-linked polyethylene) with an oxygen barrier
• Connection: JG Speedfit Push Fit fittings, with a Speedfit pipe insert in each cut end
• Sizes: 28mm, in 1m, 2m or 3m lengths
• Suitable for: Larger heating systems and primary circuits
• Standard/approval: BS 7291 Class S, Kitemarked, WRAS approved
• Max pressure: 12 bar at 20°C, 6 bar at 65°C, 3 bar at 82°C
• Max temperature: Up to 95°C hot water
• Guarantee: 50 years with JG Speedfit barrier pipe

Common Questions

Does 28mm Speedfit pipe bend easily?

No, it is fairly rigid at this size, so plan for elbows rather than forming tight bends.

What cutter cuts 28mm plastic pipe?

A plastic pipe cutter big enough for 28mm. Small shears struggle and can leave the end out of round.

When is 28mm plastic pipe needed?

On bigger heating systems, primaries and larger cold feeds where 22mm would limit the flow.

Datasheets

• JG Speedfit White PEX Barrier Pipe Length Data Sheet (PDF)
