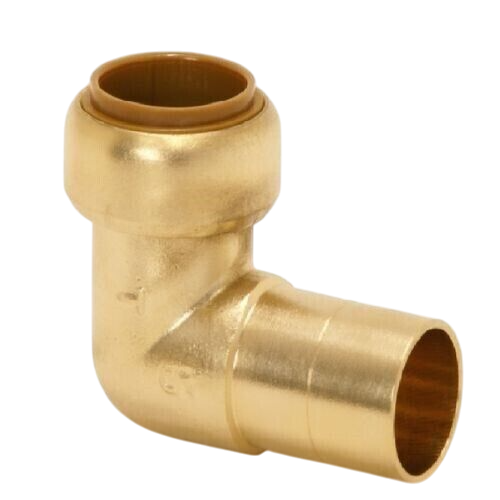

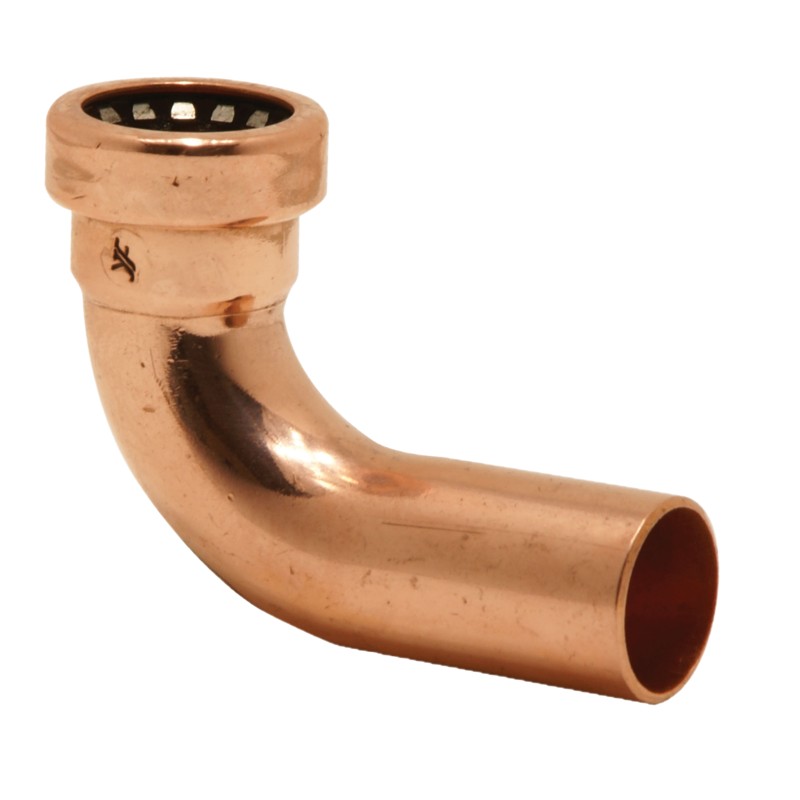

Tectite Sprint Street Elbow

The Tectite Sprint Street Elbow has a Push-Fit end on one side and a plain copper spigot on the other. The spigot goes straight into another fitting, so you can make a tight turn without cutting a short length of pipe.

Sizes: 15mm and 22mm.

Cut the pipe square, take off the burr, mark the insert depth and push it home until it stops. No heat, no flux and no spanners on the Push-Fit end. Use a pipe insert with plastic pipe.

Specification

• Brand: Pegler Yorkshire (VSH Tectite)
• Range: Tectite Sprint
• Maker code: TT12S
• Material: copper
• Connection: Push-Fit x plain spigot
• Sizes: 15mm, 22mm
• O-rings: EPDM
• Approvals: Kiwa, WRAS and Kitemark (Tectite range)
• Temperature: -24°C to +114°C (Tectite range rating)
• Max pressure: 20 bar (Tectite range rating, check the fitting’s data sheet)
• Suitable for: Drinking water, heating and cooling

Common Questions

How do you fit a Tectite Sprint fitting?
Cut the pipe square with a pipe slice, deburr it, mark the insert depth and push the pipe in until it bottoms out. Check the mark sits at the mouth of the fitting.

How do you remove a Tectite Sprint fitting?
Drain the pipe first, then use the Tectite demounting tool to release the grip ring and pull the pipe out. Check the O-ring and pipe end before you push it back in.

Do Tectite Sprint fittings need pipe inserts?
Not on copper. On PEX or polybutylene pipe, fit a pipe insert first so the pipe keeps its shape and seals properly.

Can Tectite Sprint go on central heating?
Yes. Pegler list it for drinking water, heating and cooling pipework.
