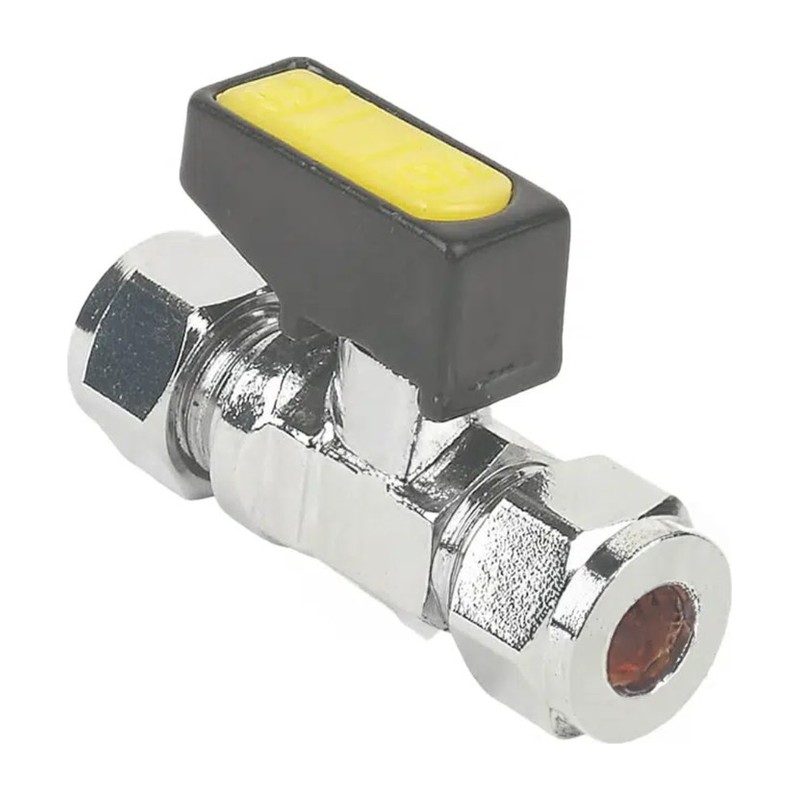

Chrome Mini Ball Valve 8mm to 15mm

Chrome mini ball valves in 8mm, 10mm and 15mm, straight, bent and reducing, plus a bracket version and a 10mm x 3/8 inch male taper. Small enough for tight spots on microbore and small feeds.

Isolating valves let you shut off the supply to one tap, cistern or appliance so the rest of the house keeps its water while you work.

Specification

• Type: Chrome mini ball valve
• Material: Chrome plated brass
• Connection: compression
• Sizes: 8mm Straight, 10mm Straight, 15mm Straight, 10mm x 8mm Straight Reducing, 15mm x 8mm Straight Reducing, 15mm x 10mm Straight Reducing, 8mm Bent, 10mm Bent, 8mm Straight with Fixing Bracket, 10mm x 3/8 inch Male Taper
• Codes: 8mm Straight CMBV8, 10mm Straight CMBV10, 15mm Straight CMBV15, 10mm x 8mm Straight Reducing CMBV108, 15mm x 8mm Straight Reducing CMBV158, 15mm x 10mm Straight Reducing CMBV1510, 8mm Bent CMBVB8, 10mm Bent CMBVB10, 8mm Straight with Fixing Bracket CMBVFB8, 10mm x 3/8 inch Male Taper CMBV10C

Common Questions

How do I turn off a service valve?
Turn the slot or lever a quarter turn. When the slot or handle sits across the pipe the valve is shut, and when it runs along the pipe it is open.

Where should isolating valves go?
On the feed to each tap, toilet cistern, water heater and appliance, close enough to reach. It saves shutting off the whole house for a washer change.

Will a compression valve fit plastic pipe?
Yes, with a pipe insert in the plastic pipe. Copper needs no insert.
