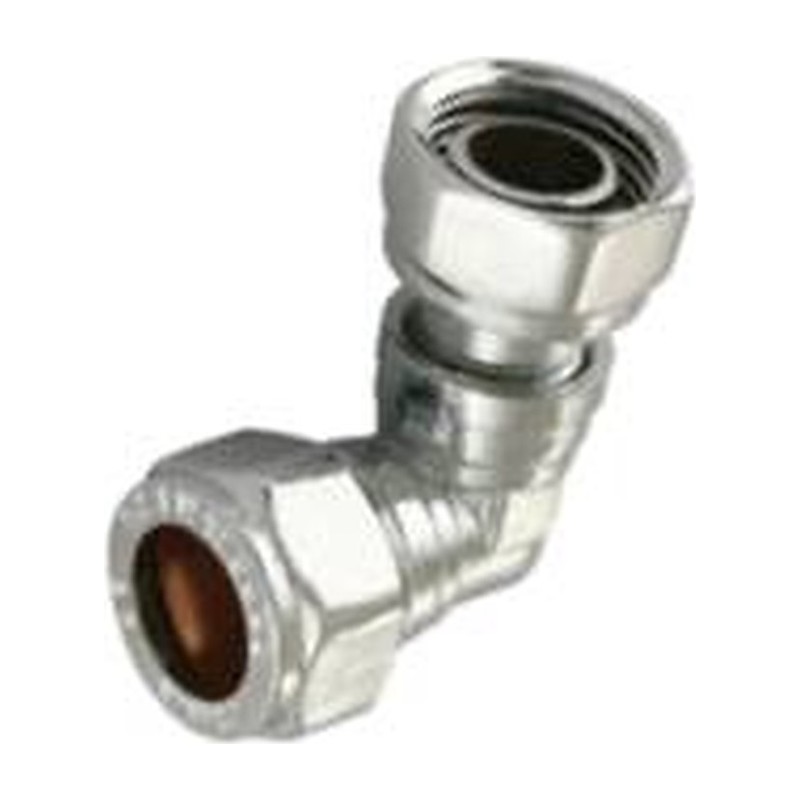

Compression Chrome Plated Bent Tap Connector 15mm

Compression Chrome Plated Bent Tap Connector

Compression Chrome Plated Bent Tap Connector used to connect a tap spigot at 90 deg to pipe or tube.

Chrome Compression Fittings

Chrome Compression fittings are especially advantageous in retrofit plumbing schemes, where space is confined and/or the use of heat must be avoided.

They are available in 6-108mm and are suitable for connecting tubes in accordance with EN 1057 and many other standards including ISO 274.

At Plumb Parts our range of Chrome Compression fittings are suitable for a broad spectrum of applications across the domestic, industrial and commercial sectors.

These types of Compression fittings are an easy to use the heat-free system, and excellent for repairs, and in applications where ongoing maintenance is envisaged

Compression fittings are available in duplex brass and/or dezincification resistant (DZR) brass or as dezincification immune gunmetal.

Fittings are also available nickel-plated or chrome-plated in accordance with EN 248.

Chrome Plated Compression fittings are suitable for connecting a wide range of tubes including copper tubes in accordance with EN 1057 and many other standards including ISO 274.

Fittings are also compatible with connecting low carbon steel, stainless steel and many types of plastic pipe including crossed linked polyethylene (PE-X) and polybutylene (PB) with size compatible outside diameters.

At Plumb Parts in Glasgow, our range of Chrome Plated Compression Fittings includes:

Straight Couplers , Reducing Couplers , Male Couplers , Female Couplers , Elbows 90 deg ,  Wallplate Elbows , Long Radius Elbows , Angled Wallplate Adaptors ,Stop Ends, Straight Tap Connectors , Bent Tap Connectors , Tees , Reduced Branch Tee , Both Ends Reduced Tee , Reduced End Tee , Reduced End and Branch Tee ,  Straight Cylinder Union , Bent Cylinder Union

Available as single units or individually bagged.

Specification

• Material: chrome plated
• Connection: bent pattern, Compression pipe end to a nut for a 1/2″ tap tail
• Sizes: 15mm x 1/2″
• Suitable for: basin and sink taps where the supply pipe is on show

Common Questions

Does the tap end need a washer?

Yes. The seal on the tap tail is made by a fibre or rubber washer inside the nut, not by the thread. Check it is sitting flat before you tighten, and keep PTFE off that thread.

Will it take chrome plated pipe as well as plain copper?

It will. 15mm chrome plated copper has the same outside size as bare copper, so it goes into the Compression end with the olive in the normal way.

How do I tighten it without scratching the chrome?

Use a spanner that fits the nut snugly rather than grips, and wrap the jaws with tape or a cloth. An adjustable that slips will mark the plating in one go.
