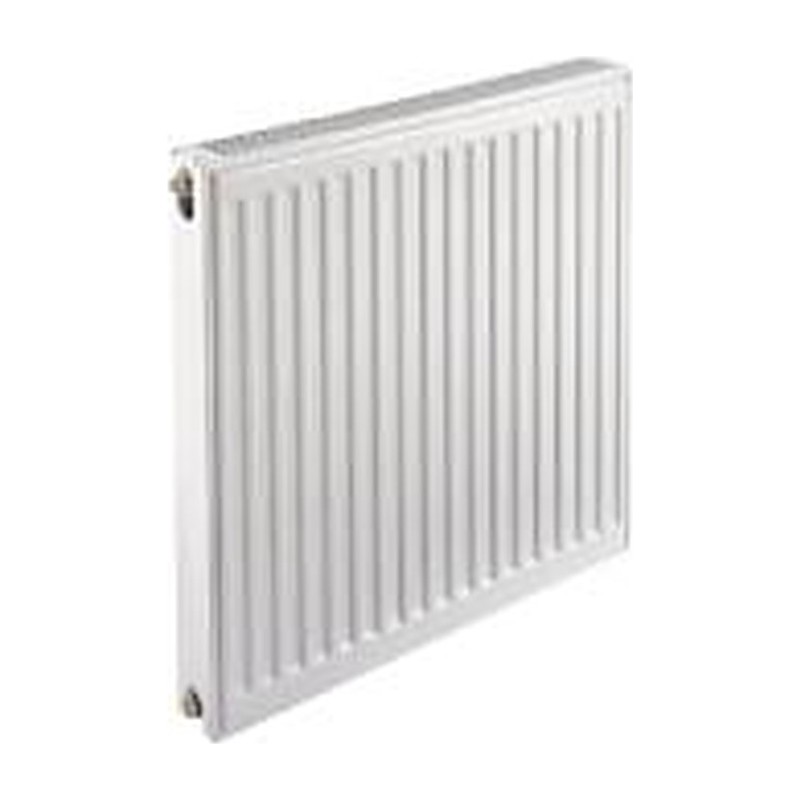

Double Panel Single Convector (P+) 750mm High Radiator

The Double Panel Single Convector Radiator in 750mm high comes in lengths from 400mm to 1000mm. Also called a P+ or Type 21, it has two panels with one set of fins between them, and it suits plumbers and DIYers filling a narrow bit of wall.

Where it goes

A tall radiator with a short length fits where a long low one will not: beside a door, between windows, in a kitchen gap between units, or in the high hallways of a tenement flat. A Type 21 sits slimmer off the wall than a Type 22, which helps in tight rooms.

Sizes available

• 400mm length, 750mm high.
• 500mm length, 750mm high.
• 600mm length, 750mm high.
• 700mm length, 750mm high.
• 800mm length, 750mm high.
• 900mm length, 750mm high.
• 1000mm length, 750mm high.

Fitting tips

Use a spirit level to mark the bracket holes, as floors are rarely flat. Fix into masonry or timber, not plasterboard alone, because a full radiator is heavy. Measure the pipe centres before cutting the tails, fill the system, bleed from the top and check again once it has run hot.

Radiators from our Glasgow counter

See other heights and lengths in our P+ radiators range. Pick it up from Plumb Parts, 555 South Street, Glasgow G14 0QX, or order online. We are open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.

Specification

• Range: Type 21 (P+) double panel, single convector
• Sizes: 750mm high; 400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm long
• Suitable for: Wet central heating systems

Common Questions

What does P+ mean?

P+ is the trade name for a double panel radiator with a single convector, also called Type 21. It gives more heat than a single panel without the full depth of a Type 22.

Is a 750mm high radiator fine in a kitchen?

Yes. Its short length fits gaps that units leave, and it stays fairly slim off the wall.

What size do I need for my room?

Work out the room heat loss first, then match it to the radiator output. Ask at the counter and we can help you check.
