End Feed Bent Tap Connector 15mm to 22mm
Price range: £1.60 through £3.42 inc VAT ( Price range: £1.33 through £2.85 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
An End Feed bent tap connector joins copper pipe to a tap tail or threaded valve with a 90 degree bend. Sizes run from 15mm x 1/2″ up to 54mm x 2″, soldered on the copper side. Sold at Plumb Parts, Glasgow.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| EFFBTC15X1/2 |
|
15mmX1/2" | £1.60 inc VAT (£1.33 ex VAT) |
-
+
|
£1.60 inc VAT | ||
| EFFBTC15X3/4 |
|
15mmX3/4" | £2.06 inc VAT (£1.72 ex VAT) |
-
+
|
£2.06 inc VAT | ||
| EFFBTC22X3/4 |
|
22mmX3/4" | £3.42 inc VAT (£2.85 ex VAT) |
-
+
|
£3.42 inc VAT |

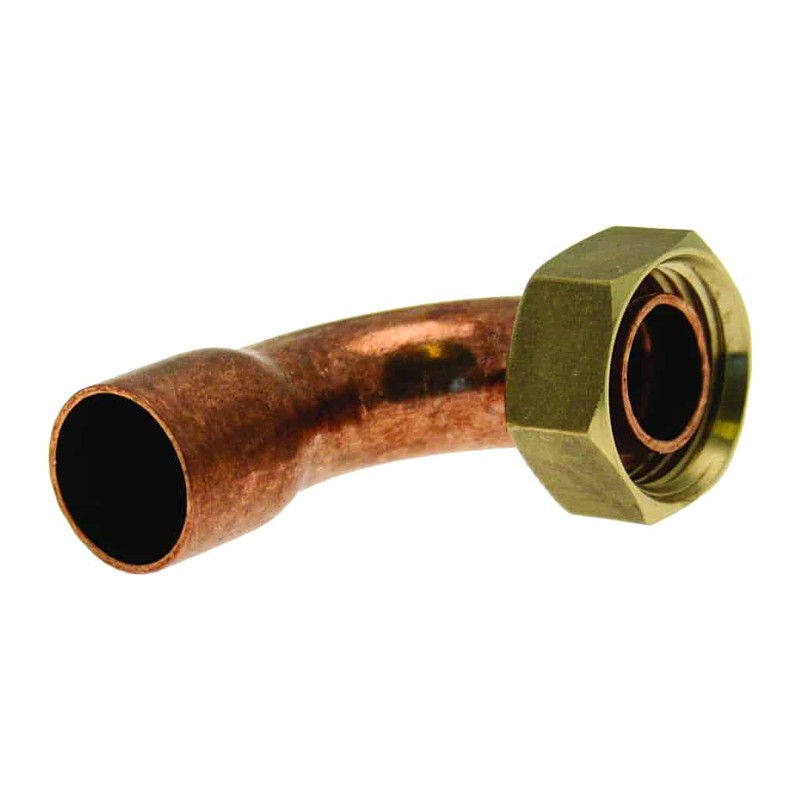

An End Feed bent tap connector turns a copper pipe through 90 degrees and finishes in a swivel nut that screws onto a tap tail or male thread. The copper end is a plain socket, so you solder it with separate solder wire and flux.
Sizes of End Feed bent tap connector
- 15mm x 1/2″ for basin and sink tap tails
- 15mm x 3/4″ and 22mm x 3/4″ for bath taps and float valves
- 22mm x 1″ and 28mm x 1″
- 35mm x 1 1/4″, 42mm x 1 1/2″ and 54mm x 2″ for larger commercial work
The small sizes cover most house work. For example, 15mm x 1/2″ goes onto basin taps, while the 3/4″ versions suit bath taps and float valves in a cold water tank. The bigger connectors turn up on tank outlets, plant rooms and commercial feeds where the pipe is 35mm and above. The bend saves space where the pipe comes up through a floor or out of a wall close to the tap.
Solder the copper side before you tighten the nut, if you can, so heat does not cook the washer. Clean and flux the pipe end, heat the fitting evenly and feed solder until a ring shows at the mouth. Once it has cooled, fit a suitable washer in the nut and tighten it onto the thread without forcing it. A connector that is cross threaded will always weep. Couplers, elbows and tees to match are in our End Feed fittings range.
End Feed fittings in Glasgow
The Plumb Parts trade counter sits at 555 South Street, Glasgow G14 0QX and opens Mon to Fri 8am to 5pm and Sat and Sun 8am to 1pm. Orders can be placed online too.
Specification
- Connection: End Feed socket x swivel nut, bent 90 degrees
- Sizes: 15mm x 1/2″, 15mm x 3/4″, 22mm x 3/4″, 22mm x 1″, 28mm x 1″, 35mm x 1 1/4″, 42mm x 1 1/2″, 54mm x 2″
- Suitable for: taps, float valves and threaded outlets fed from a pipe at right angles
Common Questions
End Feed bent tap connector: solder first or tighten first?
Solder first, with the nut and washer off or well away from the heat. Then fit the washer and do up the nut once cool.
Which one fits a cold water tank float valve?
Float valves in tanks often have 1/2″ or 3/4″ tails. Check yours and match the connector to it.
Can I use a bent tap connector on a bath tap?
Yes, bath taps usually take the 3/4″ sizes, on 15mm or 22mm pipe depending on the supply.
Plumb Parts Glasgow
555 South Street
Glasgow
G14 0QX
Tel: 0141 404 5128
Open 7 days
Mon to Fri 8am to 5pm
Sat and Sun 8am to 1pm
| Size |
15mmX1/2" ,15mmX3/4" ,15mmX3/4" ,22mmX3/4" ,22mmX1" ,28mmX1" ,35mmX1 1/4" ,42mmX1 1/2" ,54mmX2" |
|---|
