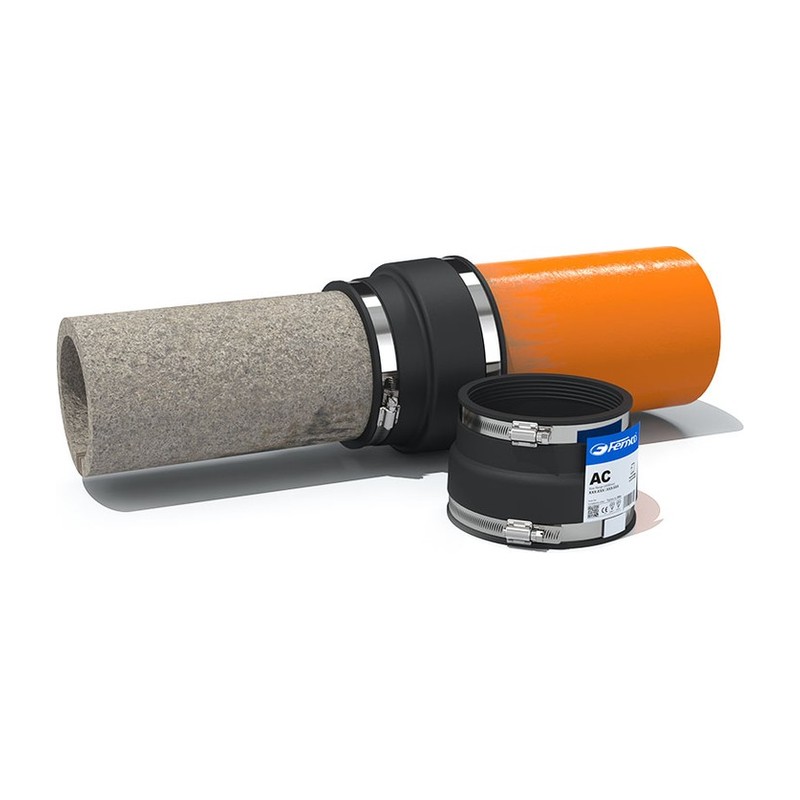

Fernco Adaptor Couplings 35mm to 420mm

Fernco Adaptor Couplings join drain and soil pipes of different materials and outside diameters, such as clay to plastic or cast iron to PVCu.

Each coupling has two size ranges, large end first, both as pipe outside diameter in mm. Offset versions (marked Offset) line up the bottom of the two pipes for a smoother flow between sizes. Measure the outside of both pipes and fit the smallest pipe first. More flexible couplings, caps and adaptors are in our flexible rubber connectors range.

Sizes and Fernco codes

100mm to 115mm x 75mm to 90mm (AC1155), 105mm to 120mm x 35mm to 45mm (AC1201), 110mm to 122mm x 48mm to 56mm (AC1225), 110mm to 122mm x 60mm to 68mm (AC1226), 110mm to 122mm x 80mm to 95mm (AC1221), 110mm to 125mm x 100mm to 115mm (AC5144), 121mm to 136mm x 80mm to 95mm (AC1361), 121mm to 136mm x 100mm to 115mm (AC1362), 121mm to 136mm x 110mm to 121mm (AC4000), 130mm to 145mm x 110mm to 125mm (AC1452), 140mm to 155mm x 90mm to 105mm (AC1552), 144mm to 160mm x 110mm to 122mm (AC1602), 144mm to 160mm x 121mm to 136mm (AC1603), 155mm to 170mm x 110mm to 125mm (AC1702), 155mm to 170mm x 130mm to 145mm (AC1703), 170mm to 192mm x 110mm to 122mm (AC1922), 170mm to 192mm x 121mm to 136mm (AC1923), 170mm to 192mm x 144mm to 160mm (AC1924), 180mm to 200mm x 130mm to 145mm (AC2000), 180mm to 200mm x 144mm to 160mm (AC6001), 180mm to 200mm x 155mm to 170mm (AC2001), 180mm to 200mm x 160mm to 180mm (AC6000), 185mm to 210mm x 100mm to 115mm (AC2100), 185mm to 210mm x 160mm to 180mm (AC2101), 190mm to 215mm x 150mm to 165mm (AC2154), 195mm to 215mm x 100mm to 115mm Offset (AC2152OS), 200mm to 225mm x 160mm to 175mm (AC2254), 210mm to 235mm x 110mm to 122mm (AC2352), 210mm to 235mm x 121mm to 136mm (AC2353), 210mm to 235mm x 144mm to 160mm (AC2354), 210mm to 235mm x 170mm to 192mm (AC2355), 210mm to 235mm x 190mm to 215mm (AC2356), 240mm to 265mm x 144mm to 160mm (AC2654), 240mm to 265mm x 170mm to 192mm (AC2655), 240mm to 265mm x 190mm to 215mm (AC2656), 240mm to 265mm x 210mm to 235mm (AC2657), 250mm to 275mm x 160mm to 175mm (AC2754), 250mm to 275mm x 200mm to 225mm (AC2756), 260mm to 285mm x 180mm to 205mm (AC9001), 265mm to 290mm x 144mm to 160mm (AC2904), 265mm to 290mm x 210mm to 235mm (AC2907), 265mm to 290mm x 235mm to 260mm (AC2908), 270mm to 295mm x 185mm to 210mm Offset (AC2956OS), 295mm to 320mm x 144mm to 160mm (AC3204), 295mm to 320mm x 170mm to 192mm (AC3205), 295mm to 320mm x 210mm to 235mm (AC3207), 295mm to 320mm x 240mm to 265mm (AC3208), 295mm to 320mm x 265mm to 290mm (AC3209), 310mm to 335mm x 180mm to 205mm Offset (AC3351OS), 335mm to 360mm x 240mm to 265mm (AC3608), 335mm to 360mm x 265mm to 290mm (AC3609), 335mm to 360mm x 295mm to 320mm (AC3600), 360mm to 385mm x 240mm to 265mm (AC3858), 360mm to 385mm x 300mm to 325mm (AC3850), 395mm to 420mm x 240mm to 265mm (AC4208), 395mm to 420mm x 265mm to 290mm (AC4209).

Sizes you can pick in the drop-down are ready to order online. For any other Fernco size in the list above, call us on 0141 404 5128 for price and availability.

Specification

• Maker: Fernco (formerly Flexseal)
• Sleeve: EPDM rubber
• Bands: Stainless steel
• Pressure rating: 0.6 bar
• Tightening torque: 6Nm up to AC2756, 13Nm AC9001 to AC4209
• Approval: Kitemark KM22943 to BS EN 295-4

Common Questions

Which one joins 4 inch clay to 110mm plastic? Measure the clay pipe: Fernco list AC1602 for 100mm Supersleve or clay to 110mm PVCu.

What does Offset mean? The pipes sit level at the bottom, which helps the flow through the joint.
