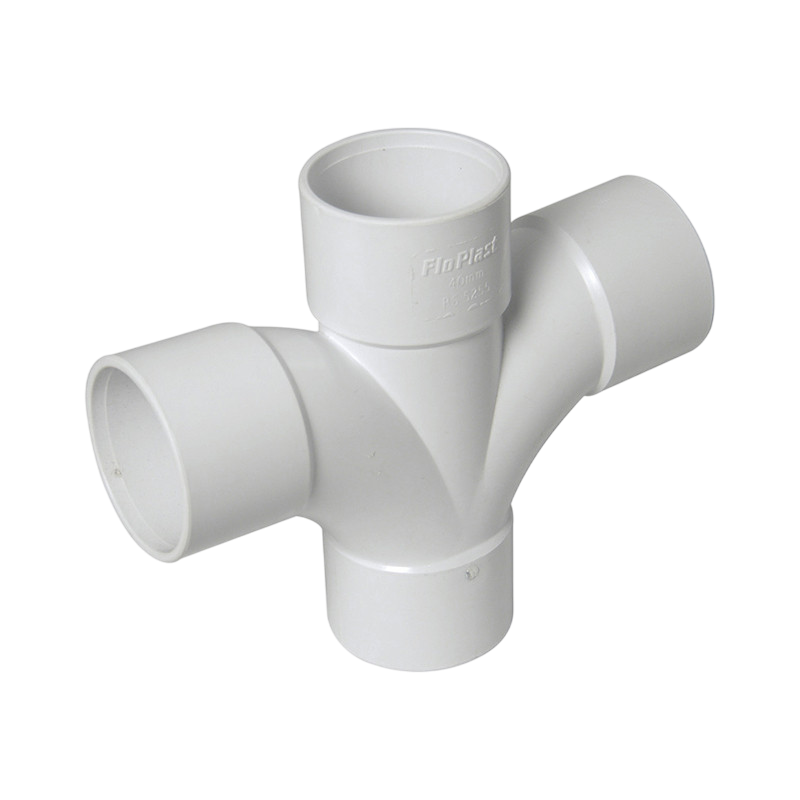

FloPlast ABS Solvent Waste 92.5° Cross Tee – WS58 40mm

Where two appliances sit either side of a shared waste, the FloPlast ABS Solvent Waste 92.5° Cross Tee WS58 picks both up at the same point. It is a 40mm Solvent Weld fitting with a branch on each side of the main run.

Using the FloPlast ABS Solvent Waste 92.5° Cross Tee WS58

Think of a bath and a basin on opposite sides of a stud wall, or two sinks back to back. A cross tee takes both branches in one fitting, which saves room and joints. The branches meet the run at slightly more than a right angle, giving each incoming pipe a little fall.

Plan the heights so both branches can fall towards the tee. Dry fit everything and mark the fitting, because ABS cement grabs quickly and there is no turning it later. Clean, cement and push each pipe fully home, then hold it a few seconds.

Opposed branches can push water across into each other if both discharge at once, so think about which appliances share it.

Collecting a cross tee in Glasgow

Clips, bends and couplers in the same 40mm size are in the Flexible range. Our Glasgow counter at Plumb Parts, 555 South Street, G14 0QX, is open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm, or have it ordered online.

Specification

• Brand: FloPlast
• Range: ABS Solvent Weld Waste
• Maker code: WS58
• Material: ABS (acrylonitrile butadiene styrene)
• Connection: Solvent Weld main sockets with two opposed side branches at 92.5 degrees
• Sizes: 40mm (FloPlast list the WS58 as 40mm x 32mm)
• Standard or approval: BS EN 1455-1, Kitemark KM 548614
• Max temperature: 70°C to 75°C continuous; hotter discharges for 2 minutes at most
• Suitable for: Picking up two appliances on opposite sides of one waste

Common Questions

When is a cross tee better than two separate tees?

When two wastes arrive at the same point from opposite sides, such as back-to-back basins or a bath and basin either side of a stud wall. One fitting saves space and joints.

Can both branches discharge at the same time?

They can, but water from one side can push across into the other. Think about which appliances share it, and keep both branches falling well.

What size are the side branches?

FloPlast list the WS58 cross tee as 40mm x 32mm. Check the branch sockets against your pipe before ordering.
