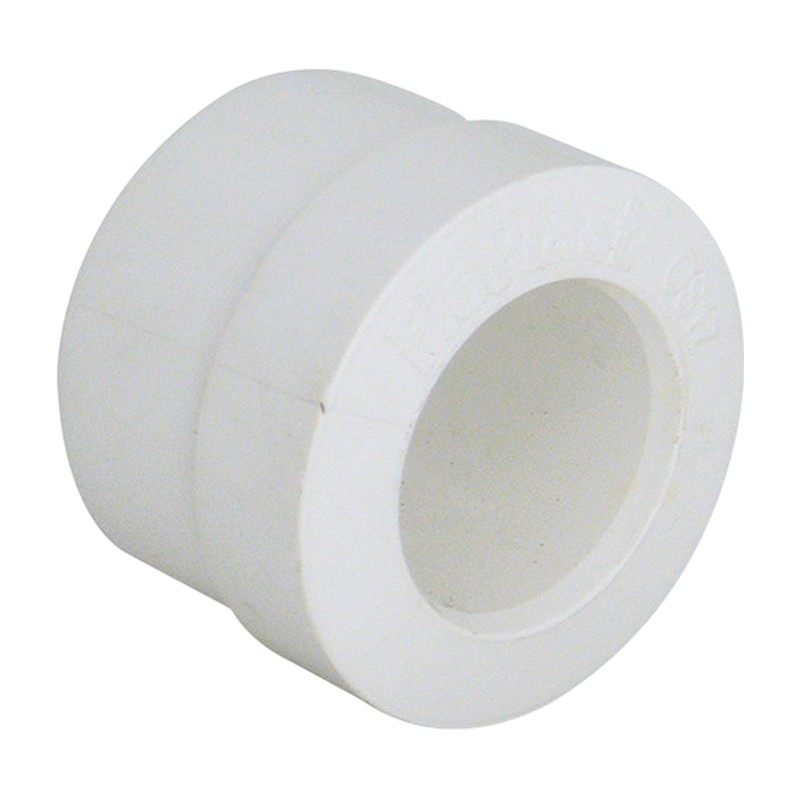

FloPlast Overflow Reducer – OS18 40mm

Sink or bath wastes can take a small pipe too: the FloPlast Overflow Reducer OS18 brings 21.5mm overflow pipe into a 40mm waste socket. It is the fitting for running a small overflow or condensate line into a sink or bath waste instead of out to its own outlet.

Using the FloPlast Overflow Reducer OS18

The usual job is a boiler condensate pipe that needs to discharge into a 40mm waste. Fit the reducer into a spare 40mm socket, a tee on the sink waste for example, and Solvent Weld the 21.5mm pipe into it.

Where the reducer goes into the waste, joint it to suit that system: cement for solvent, lubricant for Push-Fit. Then cement the 21.5mm pipe into the reducer.

Run the small pipe with a good fall and no dips. If it is condensate, check the boiler maker’s guidance on connecting into a waste, since some require a trap or a particular arrangement. Keep the reducer accessible if you can, so the joint can be checked during a boiler service.

Getting overflow reducers in Glasgow

You will find pipe, clips and 21.5mm bends listed in the Flexible range on the website. Or ask at the counter: Plumb Parts, 555 South Street, Glasgow G14 0QX, Mon-Fri 8am-5pm and Sat-Sun 8am-1pm.

Specification

• Brand: FloPlast
• Range: 21.5mm Overflow Waste
• Maker code: OS18
• Material: PVC-U
• Connection: Connects to a 40mm solvent or Push-Fit socket; Solvent Weld socket for overflow pipe
• Sizes: 40mm x 21.5mm
• Max temperature: 76°C continuous; up to 100°C for under 2 minutes
• Suitable for: Taking condensate or a small overflow into a 40mm waste

Common Questions

Is the OS18 suitable for a boiler condensate?

It is often used to take condensate into a sink or washing machine waste. Follow the boiler maker’s guidance on how that connection should be made.

Which waste systems does the large end suit?

FloPlast say it fits both Solvent Weld and Push-Fit waste sockets. Use cement for solvent and lubricant for Push-Fit.

Why must the small pipe have no dips?

Water sitting in a dip can freeze outside or hold debris. Keep a steady fall all the way to the reducer.
