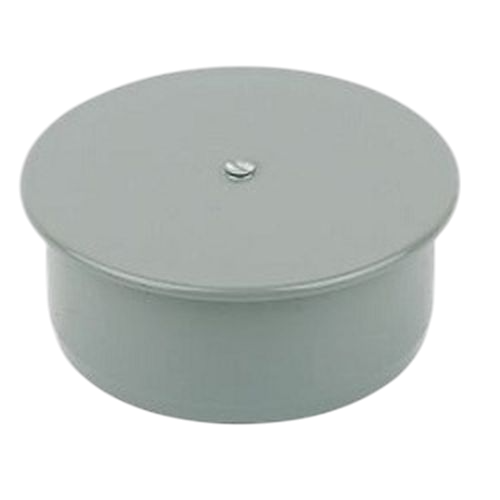

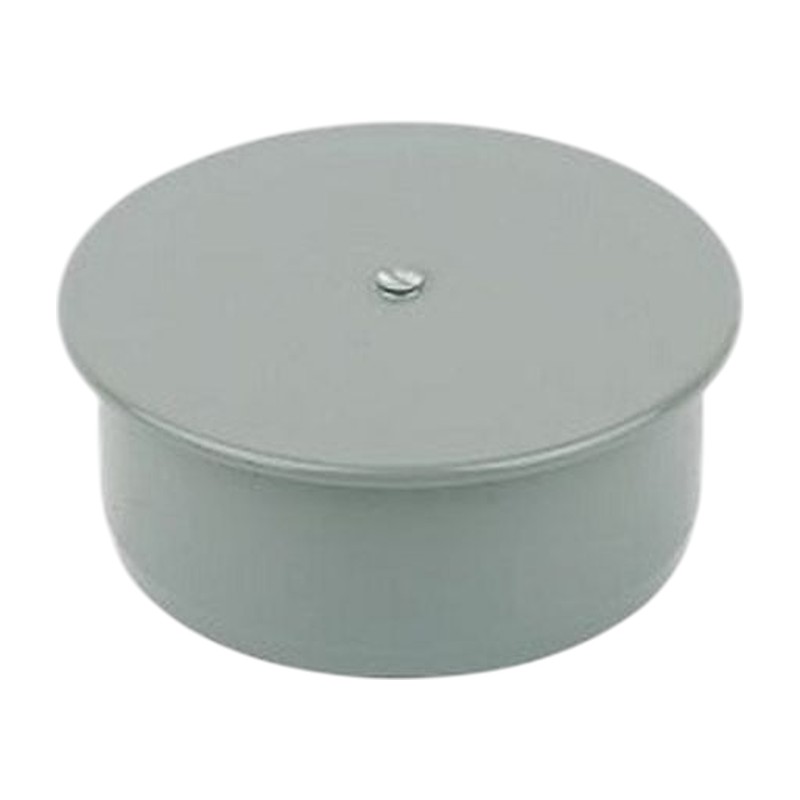

FloPlast Ring Seal Socket Plug – SP296 110mm

A spare 110mm Ring Seal socket needs closing off, and the FloPlast Ring Seal Socket Plug SP296 pushes in like a pipe to seal it.

When the FloPlast Ring Seal Socket Plug SP296 is needed

On many jobs a branch or boss pipe ends up with a spare socket. You might be first-fixing a bathroom and want the stack sealed until the pan goes in. Or you are taking a WC out during a refit and need to shut the soil pipe off for a few weeks.

Lubricate the plug with silicone and push it fully into the socket. Check it is seated all the way round.

On new builds, plugging open ends while other trades work stops rubble getting into the drain. Remove it carefully when the connection is made, and check the seal has stayed in its groove.

A plug is not an access point. For rodding, fit a screwed access cap instead.

Blanking plugs in Glasgow

If you are building the stack too, look through the Flexible range for branches and pipe. Plumb Parts, 555 South Street, Glasgow G14 0QX, has the doors open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm, or buy online.

Specification

• Brand: FloPlast
• Range: 110mm Ring Seal Soil
• Maker code: SP296
• Material: PVC-U
• Connection: Push-in plug for a Ring Seal socket
• Sizes: 110mm
• Standard or approval: BS EN 1329-1 and BS EN 1453-1, Kitemark KM 544331
• Max temperature: 70°C to 75°C continuous; hotter discharges for 2 minutes at most
• Suitable for: Blanking spare 110mm sockets

Common Questions

Can the SP296 be used as a rodding point?

No, it is a blank. For rodding, fit a screwed access cap instead.

Why plug soil pipe ends during a build?

It keeps rubble out of the drain and smells out of the house while other trades work. Pull it out when the pan or pipe is ready.

What should be checked when the plug comes out?

Make sure the socket seal is still in its groove before the pipe goes in. A displaced seal will leak.
