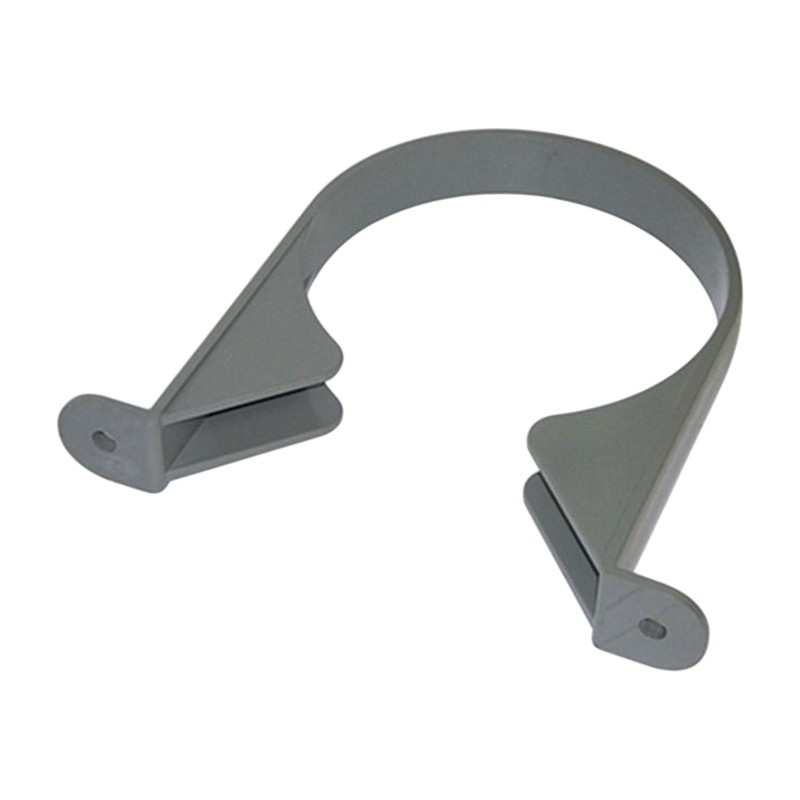

FloPlast Solvent Soil Pipe Clip – SS82 110mm

Solvent Weld soil stacks are rigid, and the FloPlast Solvent Soil Pipe Clip SS82 holds 110mm soil pipe firmly to the wall so the joints are not strained.

Fixing a stack with the FloPlast Solvent Soil Pipe Clip SS82

A clip close to each socket keeps the joints where they belong, and further clips spaced evenly carry the weight between. On an outside stack, good clipping also stops wind working the pipe loose.

Mark the clip positions with the pipe held plumb. Drill into sound brick or stone, not crumbling mortar, and use plugs that suit the wall.

Fit the clips as you build the stack, so each section is supported before the next one goes on.

Match the clip colour to the pipe for a tidy finish on the outside of the house. Near the top of a tall stack, an extra clip stops the vent end moving in high winds. Check every clip is tight once the stack is complete.

Solvent soil clips in Glasgow

The stack pipe and fittings themselves are in the Flexible range, and the Plumb Parts counter at 555 South Street, Glasgow G14 0QX, opens Mon-Fri 8am-5pm and Sat-Sun 8am-1pm for trade and public, and online.

Specification

• Brand: FloPlast
• Range: 110mm Solvent Soil
• Maker code: SS82
• Material: PVC-U
• Connection: Wall clip
• Sizes: 110mm
• Standard or approval: BS EN 1329-1 and BS EN 1453-1, Kitemark KM 544331
• Max temperature: 70°C to 75°C continuous; hotter discharges for 2 minutes at most
• Suitable for: Holding solvent soil stacks plumb

Common Questions

How far apart should soil pipe clips be? FloPlast’s advice for 110mm soil is no more than 1.8m between clips on a vertical stack and 1.0m on a horizontal run, with an anchor at each socket. Add one near bends and branches too.

What does the SS82 clip do? It holds 110mm solvent weld soil pipe to the wall between the joints, keeping the stack straight and taking the weight off the joints.

Can I use the SS82 on ring seal soil pipe? FloPlast make a separate clip, the SP82, for their ring seal soil range. Stick with the SS82 on solvent weld pipe so the system matches.

What colours does it come in? FloPlast make it in black and olive grey, so you can match it to the pipe you’re fitting.

Can it be used outside? Yes, it’s for above-ground soil and vent pipework inside or outside the building. On soft stone or render, use proper wall plugs so the fixings hold.

Is 110mm soil pipe the same as 4 inch? 110mm took over from the old 4 inch soil pipe and is now the normal size for a UK soil stack.

Datasheets

• FloPlast Soil & Waste Systems Brochure (PDF)
