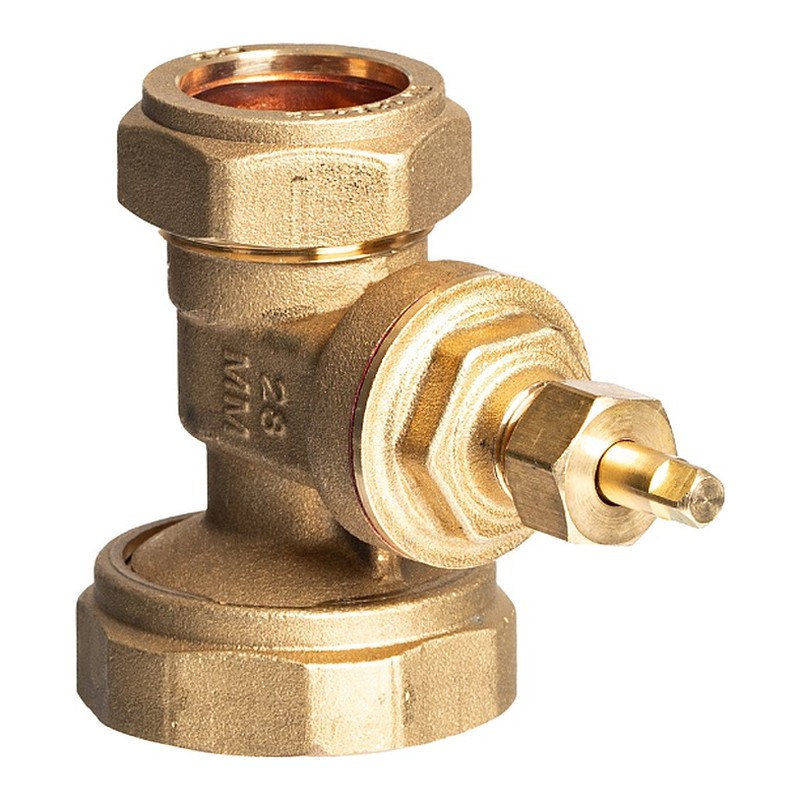

GATE TYPE PUMP VALVE 22mm to 28mm
Price range: £5.54 through £6.49 inc VAT ( Price range: £4.62 through £5.41 ex VAT)
Free Click and Collect from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Gate type pump valve in 22mm and 28mm, compression to the pipe and a union to the pump, for isolating a heating pump. Collect from 555 South Street, Glasgow.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| PR01771 |
|
22mm | £5.54 inc VAT (£4.62 ex VAT) |
-
+
|
£5.54 inc VAT ({price_excluding_tax} ex VAT) | ||
| PR01772 |
|
28mm | £6.49 inc VAT (£5.41 ex VAT) |
-
+
|
£6.49 inc VAT ({price_excluding_tax} ex VAT) |
A gate type pump valve lets you isolate a central heating pump so it can be changed with little water lost. Looking for pump valves 22mm? That is the usual size for house heating, and we also list 28mm for bigger systems. They suit heating engineers, plumbers and anyone changing a tired pump.
You fit one on each side of the pump, on the flow and the return. One end is a compression joint that grips the pipe with a nut and olive. The other is a union nut that carries the pump. Inside is a gate, worked by a turning head, which gives a clear path when fully open so it does not choke the pump. Fit new pump washers each time the pump comes off, and set the valves so you can reach the heads with the pump in place.
We keep pump valves on the shelf at our Glasgow counter. Collect from the shop, or order online.
Specification
- Material: Brass, with rubber and plastic parts
- Connection: Compression to the pipe, union to the pump
- Sizes: 22mm and 28mm
- Suitable for: Isolating a central heating circulating pump
Common Questions
Gate type or ball type pump valve?
A gate type takes several turns to close and gives a clear bore when open. A ball type shuts with a quarter turn. Both let you change a pump with little water lost.
What size pump valve do I need?
Most domestic heating pumps sit on 22mm pipe, so 22mm valves are the usual choice. Use 28mm on larger systems with 28mm pipework.
Why are my pump valves still passing water?
Sludge or scale can stop the gate seating, so it never fully shuts. Old valves also wear. If you are changing the pump, it is often worth changing the valves at the same time.
Do I need new washers when I change the pump?
Yes. Fit new fibre washers between the pump and the valve unions every time. Old washers are squashed and will often weep.
Collect from our Glasgow shop at 555 South Street, Glasgow G14 0QX, open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm, or order online for delivery.
| Size |
22mm ,28mm |
|---|
Only logged in customers who have purchased this product may leave a review.
Related products
BALL TYPE PUMP VALVE 22mm to 28mm
Price range: £5.08 through £5.76 inc VAT ( Price range: £4.23 through £4.80 ex VAT)
FULL BORE ISOLATING VALVE CXC 15mm to 22mm
Price range: £3.43 through £7.85 inc VAT ( Price range: £2.86 through £6.54 ex VAT)

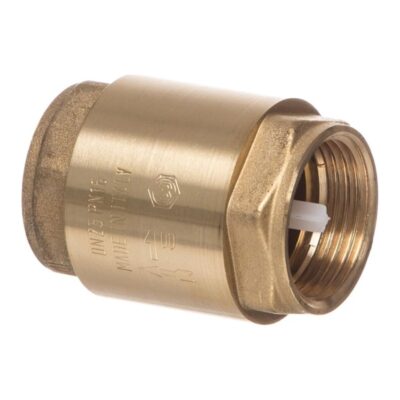

SPRING CHECK VALVE F X F 1/2 inch to 2 1/2 inch
