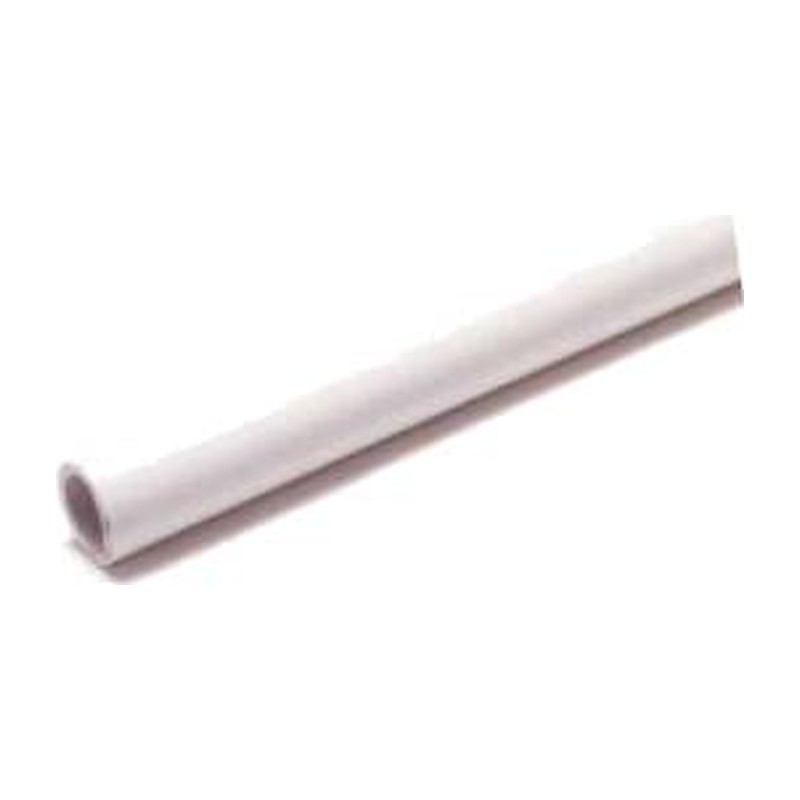

Hep2O Barrier Pipe 15mm to 28mm

Hep2O Barrier Pipe is Wavin’s polybutylene push-fit pipe with an oxygen barrier in the wall. We sell Hep2O pipe 22mm in straight 3m and 6m lengths, alongside 15mm in 3m and 6m and 28mm in 3m. It suits plumbers and heating engineers running central heating, and Wavin also list it for domestic hot and cold water. Straight lengths stay straight, so they are the choice for exposed runs and short pieces where a coil would be a nuisance.

It pushes into Hep2O fittings, and every cut end needs a Hep2O SmartSleeve, the stainless steel insert that supports the pipe inside the joint. Cut the pipe square with plastic pipe cutters, push in the SmartSleeve, then push the pipe firmly into the fitting and pull back to check it has gripped. The barrier slows oxygen getting into the heating water, which helps keep the system clean. Keep it off gas, oil and underground supplies, as Wavin don’t list it for those.

Because of their length, these are in-store collection only, so call in to our Glasgow counter for them.

Specification

• Brand: Wavin
• Range: Hep2O
• Maker code: HXX06/15W (15mm x 6m In Store Collection Only), HXX06/22W (22mm x 6m In Store Collection Only)
• Material: Polybutylene with an oxygen barrier
• Connection: Hep2O push-fit fittings, with a SmartSleeve insert in every pipe end
• Sizes: 15mm x 3m, 15mm x 6m, 22mm x 3m, 22mm x 6m, 28mm x 3m
• Standard/approval: Kitemarked to BS 7291 Parts 1 and 2 Class S and BS EN ISO 21003; WRAS approved
• Max pressure: 12 bar at 20°C, falling to 6 bar at 95°C
• Max temperature: 95°C (114°C for short malfunction only)
• Suitable for: Central heating, and domestic hot and cold water; not for gas, oil or underground supplies
• Pack quantity: Single straight length, in-store collection only
• Guarantee: 50 year Wavin guarantee

Common Questions

What is Hep2O pipe?

It is Wavin’s plastic push-fit plumbing pipe, made from polybutylene. The barrier version has a layer in the wall that slows oxygen getting into heating water.

Do I need a SmartSleeve in Hep2O pipe?

Yes, in every cut end that goes into a fitting. It supports the pipe so the joint seals and grips properly.

Can I connect Hep2O to copper pipe?

Yes. Hep2O fittings take copper tube as well as Hep2O pipe, so a coupler or reducer can tie the two together. The SmartSleeve only goes in the plastic pipe.

How do I cut Hep2O pipe?

Use proper plastic pipe cutters and cut square, not with a hacksaw. A square, clean end lets the SmartSleeve sit right and the pipe go fully home.

Datasheets

• Wavin Hep2O Installer Guide (Key and Keyless) (PDF)

Collect from our Glasgow shop at 555 South Street, Glasgow G14 0QX, open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm. This item is collect only.
