Hep2O Brass Male Spigot Adaptor 15mm to 28mm

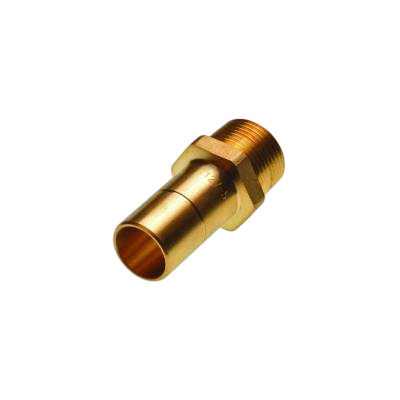

Hep2O Brass Male Spigot Adaptor

At Plumb Parts our Hep2O Fittings are available in the following:

Metric sizes: 15mm, 20mm, 25mm, 28mm

Imperial sizes: 1/2”, 3/4 “

Our Range Of Hep2O Fittings includes unique features that enable quick and easy installation with a secure fitting. It is the only push-fit plumbing system with joint recognition, secure de-mounting and a 50 year guarantee.

Our range includes:

Hep2O Equal Straight Couplers,  Hep2O Equal Tees, Hep2O  Equal Elbows, Hep2O  Branch and one end reduced Tees,Hep2o  end reduced Tees, Hep2O double end reduced tees, Hep2O Spigot Elbows, Hep2O  Branch Reduced Tees, Hep2O  Spigot Reducers, Hep2O  Obtuse bends 135 Deg, Hep2O  Branched Reduced Spigot Tees, Hep2O Tank Connectors, Hep2O Straight Tap Connectors, Hep2O Male Couplers, Hep2O Straight Service Valve, Hep2O  Bent Tap Connector, Hep2O Wall Plate Elbows, Hep2O Bent Service Valve, Hep2O Hand-Titan Tap Connectors,, Hep2O Blanking pegs, Hep2O Stop Cocks, Hep2O Female Couplers, Hep2O Stop-Ends, Hep2O Shut-off Valve, Hep2O Alliance Valve, Hep2O Ball Valve Valves, Hep2O Drain Cock-Brass, Hep2O Double Check valve, Hep2O  Gate Valves.

Key Features:

• A secure joint every time with In4Sure joint recognition
• Secure demounting with HepKey system
• Fully compatible with copper
• Hot and cold flexible push-fit plumbing system
• WRAS approved
• Kitemarked to BS 7291 parts 1 & 2

Specification

• Brand: Wavin
• Range: Hep2O
• Maker code: HX31/28W
• Connection: Push fit
• Sizes: 15mm x 1/2″, 22mm x 3/4″, 28mm x 1″
• Standard/approval: BS 7291 Class S, Kitemarked, WRAS approved
• Max pressure: 12 bar at 20°C, 6 bar at 95°C
• Max temperature: Up to 95°C
• Suitable for: Hot and cold water and central heating (not gas)
• Guarantee: 50 years

Common Questions

Can Hep2O be used on central heating? Yes, Hep2O is for hot and cold water and central heating, rated 12 bar at 20°C and 6 bar at 95°C. It’s not for gas.

Can I use Hep2O fittings with copper? Yes, Hep2O is fully compatible with copper. On this adaptor the spigot end pushes into a Hep2O socket and the 1″ male thread goes into a female threaded part.

How long does Hep2O last? Hep2O comes with a 50 year guarantee. This HX31/28W is the 28mm x 1″ size, and you can collect it from our South Street counter in Glasgow.

Can you reuse Hep2O fittings? Hep2O joints can be taken apart with the HepKey demounting tool. Check the fitting and pipe end are in good condition before remaking, and follow the Wavin installer guide.

What is the Hep2O male spigot adaptor made of? This adaptor is brass. The Hep2O pipe it works with is polybutylene.

What sizes does the Hep2O brass male spigot adaptor come in? We list it in 15mm x 1/2″, 22mm x 3/4″ and 28mm x 1″.

Datasheets

• Wavin Hep2O Installer Guide (Key and Keyless) (PDF)
