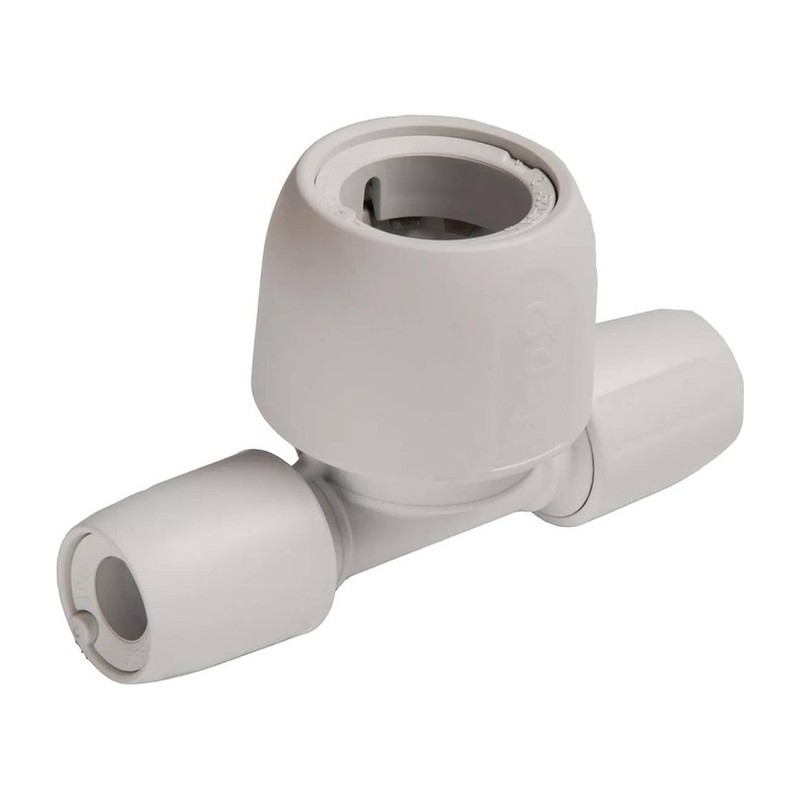

Hep2O Double End Reduced Tee 15mm to 22mm
Price range: £4.03 through £7.02 inc VAT ( Price range: £3.36 through £5.85 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
The Hep2O Double End Reduced Tee: two reduced run ends, one bigger branch. Sizes 10mm x 10mm x 15mm, 10mm x 10mm x 22mm and 15mm x 15mm x 22mm, from Plumb Parts in Glasgow.
| SKU | Thumbnail | Sizes | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| HD1815W |
|
10mmx10mmx15mm | £7.02 inc VAT (£5.85 ex VAT) |
-
+
|
£7.02 inc VAT | ||
| HD18A22W |
|
10mmx10mmx22mm | £4.69 inc VAT (£3.91 ex VAT) |
-
+
|
£4.69 inc VAT | ||
| HD1822W |
|
15mmx15mmx22mm | £4.03 inc VAT (£3.36 ex VAT) |
-
+
|
£4.03 inc VAT |
On the Hep2O Double End Reduced Tee, the branch is the biggest port and both run ends are a size or two down. So a larger feed comes in through the branch and splits two ways into smaller pipes, a handy layout for feeding radiators either side of a drop.
Hep2O Double End Reduced Tee in use
Sizes are read end x end x branch. 10mm x 10mm x 15mm takes a 15mm drop and splits it into two 10mm microbore pipes. 10mm x 10mm x 22mm does the same from a 22mm feed. 15mm x 15mm x 22mm splits a 22mm supply into two 15mm runs, for example to a pair of basins or to two radiators.
All three ends are Push Fit sockets. Fit support sleeves in the pipe, push home and check each one by pulling back. If a branch has to come apart later, a Hepkey frees it without damaging the pipe.
Look through more tees in our Hep2O fittings range.
Specification
- Brand: Hep2O
- Maker code: HD18/22W (15mm x 15mm x 22mm)
- Connection: Push Fit sockets
- Sizes: 10mm x 10mm x 15mm, 10mm x 10mm x 22mm, 15mm x 15mm x 22mm
- Material: Polybutylene body, EPDM O-ring
- Standard or approval: BS 7291 Parts 1 and 2, Class S (Kitemark)
- Max pressure: 12 bar at 20°C
- Max temperature: 95°C at up to 6 bar (114°C short fault only)
- Suitable for: Splitting a larger branch feed into two smaller runs
- Guarantee: 50 years
Common Questions
Where does the feed go on a double end reduced tee?
Into the branch, which is the largest port. The two smaller ends carry the water away each side.
Is 10mm x 10mm x 22mm a common size?
It suits a 22mm heating drop splitting straight into two microbore runs, for example to radiators either side of a wall.
Does each end need an insert?
Yes, every plastic pipe going into the tee needs its pipe insert, on the 10mm ends as well as the large branch.
Hep2O tees in Glasgow
Plumb Parts sells the full range at 555 South Street, Glasgow G14 0QX. Times are Mon-Fri 8am-5pm and Sat-Sun 8am-1pm, and ordering online is available too.
Datasheets
| Sizes |
10mmx10mmx22mm ,10mmx10mmx15mm ,15mmx15mmx22mm |
|---|
