Hep2O Flexible Connector 300mm to 500mm
Price range: £5.16 through £8.51 inc VAT ( Price range: £4.30 through £7.09 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.

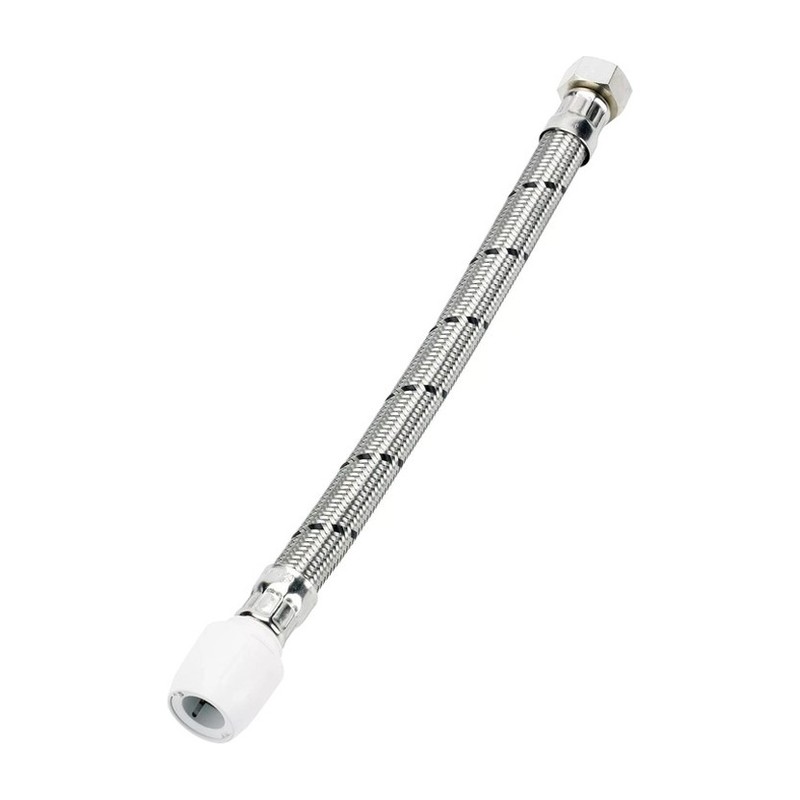

The Hep2O Flexible Connector links a Hep2O pipe to a tap or appliance with a bendable hose. 300mm or 500mm long, in 15mm x 1/2″, 15mm x 3/4″ and 22mm x 3/4″. Sold at Plumb Parts, Glasgow.
| SKU | Thumbnail | Size | Variation | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|---|
| HD125A/15W |
|
300mm | 15mm x 1/2" | £5.16 inc VAT (£4.30 ex VAT) |
-
+
|
£5.16 inc VAT | ||
|
|
300mm | 15mm x 3/4" | £6.11 inc VAT (£5.09 ex VAT) |
-
+
|
£6.11 inc VAT | |||
|
|
300mm | 22mm x 3/4" | £6.11 inc VAT (£5.09 ex VAT) |
-
+
|
£6.11 inc VAT | |||
| HD225A/15W |
|
500mm | 15mm x 1/2" | £7.07 inc VAT (£5.89 ex VAT) |
-
+
|
£7.07 inc VAT | ||
|
|
500mm | 15mm x 3/4" | £8.00 inc VAT (£6.67 ex VAT) |
-
+
|
£8.00 inc VAT | |||
| HD225B/22W |
|
500mm | 22mm x 3/4" | £8.51 inc VAT (£7.09 ex VAT) |
-
+
|
£8.51 inc VAT |
If the pipe and tap do not quite line up, the Hep2O Flexible Connector takes up the difference. It is a flexible hose with a Hep2O connection at one end and a threaded nut at the other for a tap tail or appliance.
Picking a Hep2O Flexible Connector
Choose the length first: 300mm for short drops under a basin or sink, and 500mm where the tap sits further from the pipe, for example on a bath. Then match the thread: 1/2″ for the usual basin or sink tap, 3/4″ on 15mm pipe for a larger tail, and 22mm x 3/4″ when a bath tap needs the bigger bore.
Avoid tight kinks, and do not twist the hose when tightening the nut. Hold the hose end still while you turn the nut. Leave it where it can be reached, because flexible hoses should be checked now and then.
Rigid tap connectors are listed in our Hep2O fittings range.
Specification
- Brand: Hep2O
- Maker code: HD125A/15W (300mm 15mm x 1/2″), HD225A/15W (500mm 15mm x 1/2″), HD225B/22W (500mm 22mm x 3/4″)
- Connection: Hep2O end, threaded nut with washer
- Sizes: 300mm and 500mm, 15mm x 1/2″, 15mm x 3/4″ and 22mm x 3/4″
- Suitable for: Connecting taps where pipe and tail do not line up
- Standard/approval: BS 7291 Class S, Kitemarked, WRAS approved
- Max pressure: 12 bar at 20°C, 6 bar at 95°C
- Max temperature: Up to 95°C
- Guarantee: 50 years
Common Questions
Can a flexible connector be bent tight?
Keep to a gentle curve. A sharp kink can restrict flow and stress the braid, so pick a longer one rather than forcing it.
Does the nut end need PTFE?
No. The washer in the nut seals on the end of the tap tail. Tape on the thread does nothing for the seal.
Can I use it on a mixer shower?
Check the shower inlet thread and flow needs first. A 22mm x 3/4″ connector keeps the bore up where flow matters.
Flexible connectors from our Glasgow counter
Plumb Parts, 555 South Street, Glasgow G14 0QX. It is open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm, with online orders taken.
Datasheets
| Size |
300mm ,500mm |
|---|---|
| Variation |
15mm x 1/2" ,15mm x 3/4" ,22mm x 3/4" |
