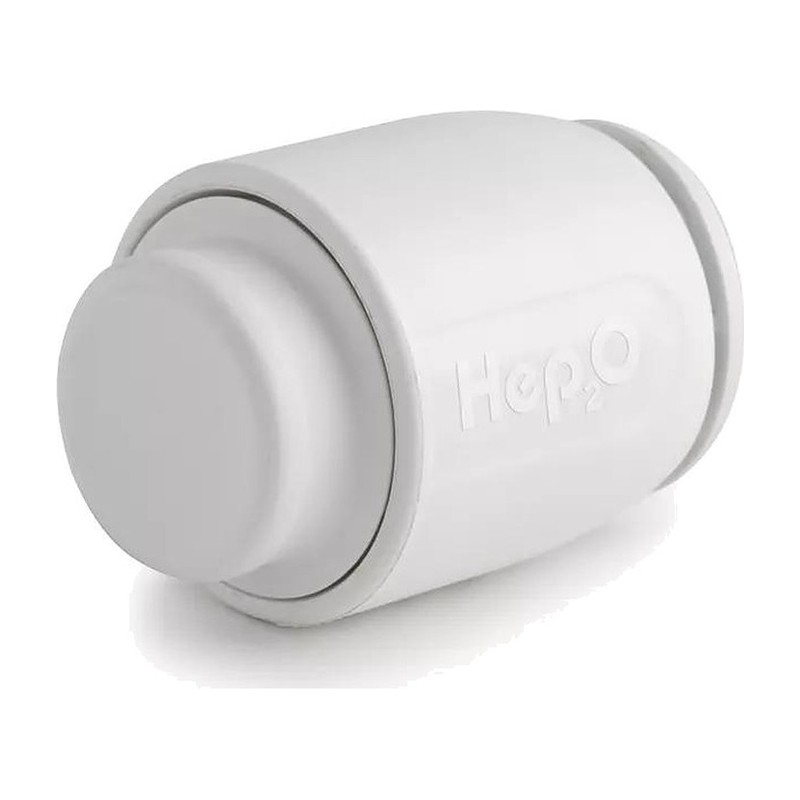

Hep2O Stop End 10mm to 28mm

Capping a pipe that is no longer needed, or one that is ready for later, is the job of the Hep2O Stop End. It is a closed Push Fit socket that pushes onto the pipe end and seals it.

When to use a Hep2O Stop End

Common uses include capping a radiator tail when a radiator comes off, closing a branch run in for a future bathroom, and sealing pipework during a pressure test. It can also go on the end of a spare copper pipe, because the socket takes copper as well as plastic.

On plastic pipe, fit a support sleeve before pushing the stop end on. Push it fully home and pull to check it has locked. If the pipe is going to be capped for good inside a wall or floor, think about cutting the pipe back to a tee and removing the dead leg, because water sitting still is not ideal.

Blanking pegs for fitting sockets are also in our Hep2O fittings range.

Specification

• Brand: Hep2O
• Maker code: HD62/10W (10mm), HD62/15W (15mm), HD62/22W (22mm), HD62/28W (28mm)
• Connection: Single Push Fit socket
• Sizes: 10mm, 15mm, 22mm and 28mm
• Material: Polybutylene body, EPDM O-ring
• Standard or approval: BS 7291 Parts 1 and 2, Class S (Kitemark)
• Max pressure: 12 bar at 20°C
• Max temperature: 95°C at up to 6 bar (114°C short fault only)
• Suitable for: Capping live or spare pipe ends
• Guarantee: 50 years

Common Questions

What is a Hep2O stop end used for? It caps off the end of a pipe, either for good or while a system is being tested or extended later. It is push fit, made in 10mm, 15mm, 22mm and 28mm.

Can I use a Hep2O stop end on copper pipe? Yes, it takes both copper tube and Hep2O plastic pipe. On plastic pipe, fit the support sleeve first so the pipe keeps its shape.

Can I take a Hep2O stop end off again later? Yes, it is demountable, so it can come off with the HepKey when you want to extend the run. Drain down and depressurise the pipe before you remove it.

What pressure and temperature is a Hep2O stop end rated for? Wavin rate it at 12 bar at 20°C and 6 bar at 95°C, and it handles water up to 95°C.

Can I use a Hep2O stop end on a gas pipe? No, it is for hot and cold water and central heating only, not gas.

How do I know the pipe is pushed far enough into the stop end? Hep2O has In4Sure joint recognition, so you can feel and see when the pipe has gone in to full depth.

What are the maker codes for each size of stop end? They are HD62/10W for 10mm, HD62/15W for 15mm, HD62/22W for 22mm and HD62/28W for 28mm.
