Hep2O Tank Connector 15mm to 22mm
Price range: £2.35 through £2.95 inc VAT ( Price range: £1.96 through £2.46 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
The Hep2O Tank Connector runs Hep2O pipe into or out of a cold water tank or cistern. Choose 15mm x 1/2″ or 22mm x 3/4″; Plumb Parts in Glasgow has both.
| SKU | Thumbnail | Sizes | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| HX2015W |
|
15mmx1/2" | £2.35 inc VAT (£1.96 ex VAT) |
-
+
|
£2.35 inc VAT | ||
| HX2022W |
|
22mmx3/4" | £2.95 inc VAT (£2.46 ex VAT) |
-
+
|
£2.95 inc VAT |

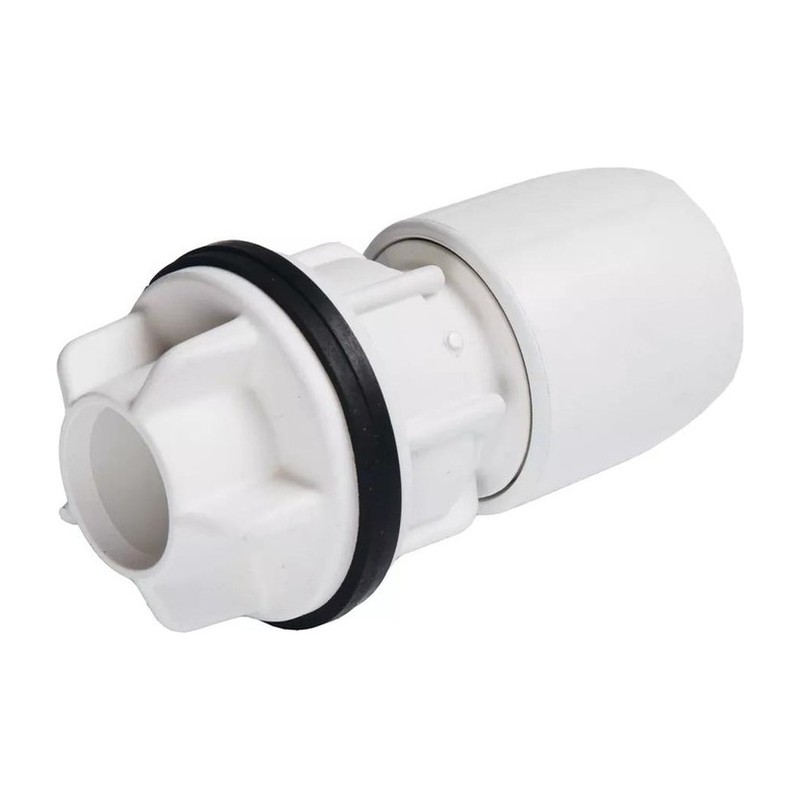

Getting plastic pipe into or out of a storage tank calls for a Hep2O Tank Connector. Its threaded body goes through the side of the tank and a backnut clamps it, while the inner end is a Push Fit socket.
Fitting the Hep2O Tank Connector
Cut a clean hole in a flat part of the tank, away from ribs and corners. Fit the sealing washers so the tank wall is sandwiched, then do the backnut up firmly without distorting the plastic. Next, slide a Hep2O support sleeve into the cut end, then push that pipe home until the grip locks.
The 15mm x 1/2″ size suits cistern feeds, vent pipes and small outlets. The 22mm x 3/4″ size is the usual one for the main outlet from a loft cold water tank, feeding the cylinder and bathroom. Clip the pipe near the tank wall, so the connector is not hanging on it.
Elbows, tees and other parts are also in our Hep2O fittings range.
Specification
- Brand: Hep2O
- Maker code: HX20/15W, HX20/22W
- Connection: BSP tail with backnut, Hep2O socket
- Sizes: 15mm x 1/2″ and 22mm x 3/4″
- Suitable for: Cold water storage tanks only
- Standard/approval: BS 7291 Class S, Kitemarked, WRAS approved
- Max pressure: 12 bar at 20°C, 6 bar at 95°C
- Guarantee: 50 years
Common Questions
Can a Hep2O tank connector go on a hot tank?
No. Hep2O list it for cold water use only.
How big a hole does the tank connector need?
A hole that just clears the threaded tail. Use a hole saw of the right size and clean off any swarf.
Should the outlet be at the bottom of the tank?
Keep the outlet a little above the base so sediment stays in the tank.
Tank fittings from Plumb Parts in Glasgow
Tank connectors are kept at 555 South Street, Glasgow G14 0QX. Plumb Parts opens Monday to Friday 8am to 5pm and Saturday and Sunday 8am to 1pm, with online ordering too.
Datasheets
| Sizes |
15mmx1/2" ,22mmx3/4" |
|---|
