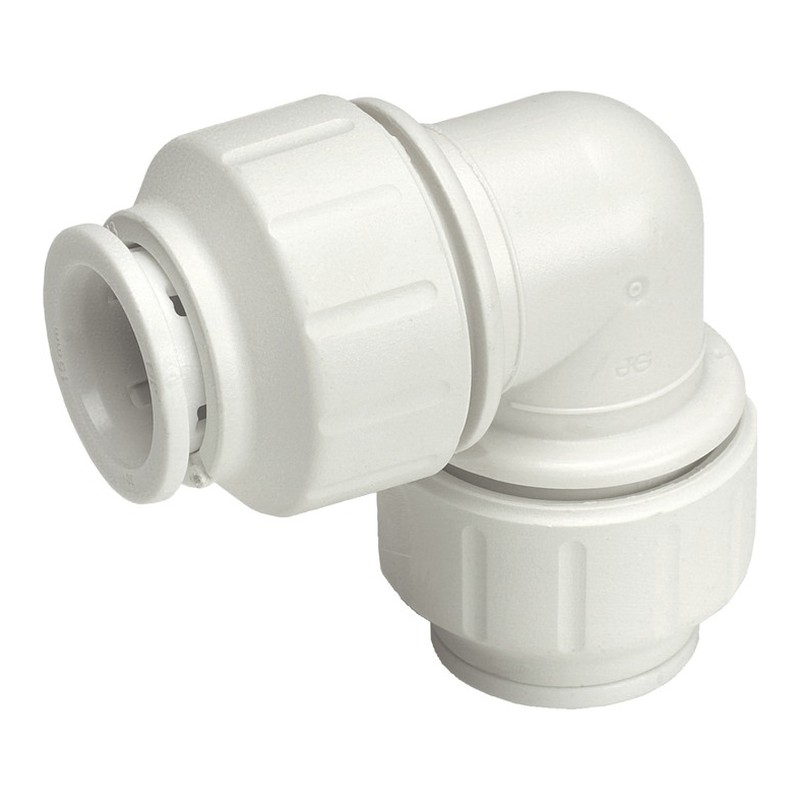

JG SPEEDFIT ELBOW 10mm to 28mm

JG Speedfit ELBOW

At Plumb Parts our JG Speedfit FITTINGS are available in the following:

Metric sizes 10mm, 15mm, 20mm, 22mm, 28mm

And Imperial sizes from 1/2″,  3/4″

Our range of JG Speedfit Fittings includes JG Speedfit Equal Straight Coupler, JG Speedfit Reducing Coupler,  JG Speedfit  Elbow JG Speedfit Male Couplers, JG Speedfit Straight Tap Connectors, JG Speedfit Bent Tap Connectors, JG Speedfit StopEnds, JG Speedfit Fitting Reducers, JG Speedfit Tank Connectors, JG Speedfit Plugs, JG Speedfit Conversion Connector, JG Speedfit Hose Connector, JG Speedfit 4  Way Manifold, JG Speedfit Port Rail Manifold, JG Speedfit Brass Manifold, JG Speedfit Brass Male Coupler, JG Speedfit Brass Female Couplers, JG Speedfit Brass Back plate Elbow, JG Speedfit Brass Male Stem Adaptor, JG Speedfit Brass Female Stem Adaptor, JG Speedfit Flexible Hoses, JG Speedfit Stop Tap, JG Speedfit Appliance Taps, JG Speedfit Emergency Shut Off Tap, JG Speedfit Angle Stop Valve, JG Speedfit Double Check Valve, JG Speedfit Plastic Service Valves,  JG Speedfit Plastic Service Vale with Tap Connector, JG Speedfit Plastic Angle Service Valve with Tap Connector, JG Speedfit Plastic Ball Valve, JG Speedfit Double Check Valve with Service Valve, JG Speedfit Brass Service Vale, JG Speedfit Chrome Service Valve, JG Speedfit Chrome Service Valve with Tap Connector, JG Speedfit Chrome Ball Valve, JG Speedfit Brass Stop Valve, JG Speedfit Drain Cock Valve, JG Speedfit Radiator Outlet Plate, JG Speedfit Pipe Inserts, JG Speedfit Chrome Ball Valves, JG Speedfit SuperSeal Pipe Inserts, JG Speedfit 2Way Divider, JG Speedfit Conduit Elbow, JG Speedfit Collect Locking Clips, JG Speedfit Release Aids.

Plastic Push-Fit fitting to connect pipe. The uniquely designed fitting incorporates stainless teeth to provide a tight and secure grip on the pipe. The connection is demountable if required, ensuring the system is easy to work when in the ground and needing to maintain and alter existing set-up. Installation time is greatly reduced when compared against traditional fixing methods.

Features:

• Mains fed and indirect cold water systems
• Vented and unvented hot water systems
• Vented central heating systems
• Sealed central heating systems provided temperatures and pressures comply with BS7291 Parts 1 and 3 Class S

Specification

• Brand: JG Speedfit
• Range: Speedfit Push Fit plumbing and heating
• Connection: Push Fit
• Sizes: 10mm, 15mm, 22mm and 28mm
• Standard or approval: BS 7291 Parts 1, 2 and 3, Class S (JG licence KM39767)
• Max pressure: 12 bar on cold water at 20°C; 6 bar on hot water; 3 bar on central heating
• Max temperature: 95°C on hot water; heating usually 82°C, with short-term malfunction up to 114°C
• Suitable for: Mains and indirect cold water, vented and unvented hot water, vented and sealed central heating
• Guarantee: 50 years with JG Speedfit barrier pipe

Common Questions

Can a Speedfit elbow be used on copper?

Yes. Copper to BS EN 1057 pushes straight in, no insert needed. Just cut it square and take the burr off so the O ring is not nicked.

How do I get pipe back out of the elbow?

Take the pressure off first. Push the collet square against the body, hold it there, and draw the pipe out.

Is there a minimum gap between a Speedfit elbow and a pipe clip?

Yes, JG say no closer than 60 millimetres from the end of the fitting, so the joint is not side loaded.
