Pegler XPress Press-Fit Gas Copper Fitting Reducer 22mm to 108mm

Pegler XPress Press-Fit Gas Copper Fitting Reducer

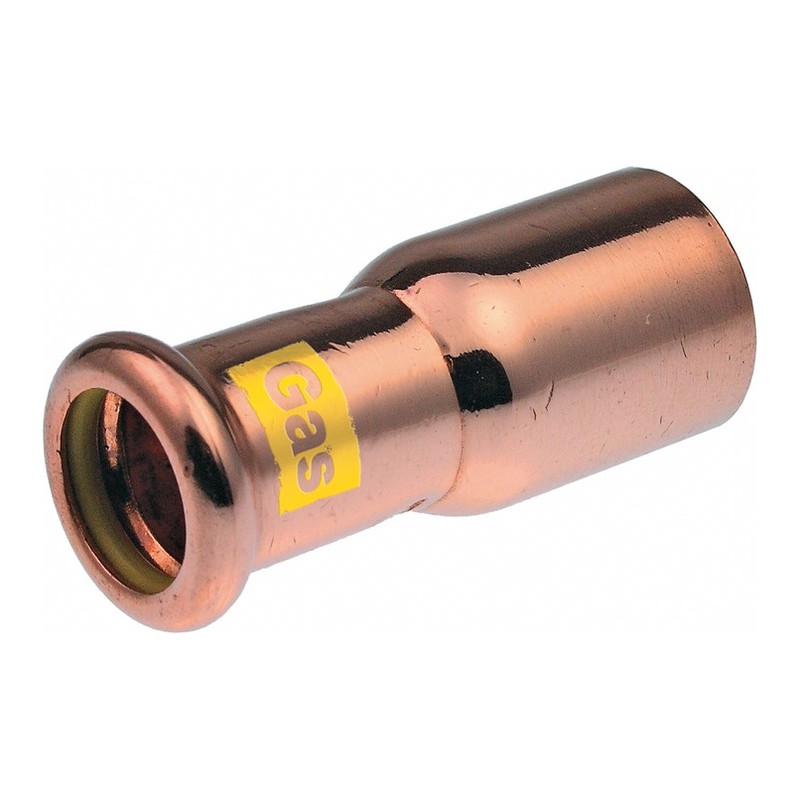

This is a gas fitting reducer for stepping down in pipe size. The listing runs from 22 x 15mm up to 108 x 88.9mm; the full set is in the Specification below.

The larger end is a male spigot that goes into another gas press fitting, and the smaller end presses onto tube. Stay within the gas range so the seals match, and do not push it into a water fitting. Reductions from 108mm are listed for large bore work.

Browse the whole Pegler XPress Press-Fit Fittings range at Plumb Parts, running from 15mm up to 108mm.

Alongside this one, the Pegler XPress Press-Fit system takes in: Copper Straight Couplers, Copper Reducing Couplers, Copper Straight Coupling Slips, Copper Straight Female Connectors, Copper Straight Male Connectors, Gas Copper Male Reducers, Copper Female Adaptors, Copper Male Adaptors, Copper Union Coupling, Copper Equal Elbows, Copper Reduced Elbows, Copper Street Elbows, Copper Knuckle Elbows, Copper Male Elbows, Copper Female Elbows, Copper Backplate Elbows, Copper Long Pattern BackPlate Elbows, Copper Bends, Copper Obtuse Elbows, Copper Obtuse Street Elbows, Copper Crossover, Copper Partial Crossovers, Copper Full Crossovers, Copper Equal Tees, Copper Reduced Branch tees, Copper One End Reduced Tees, Copper One End Reduced And End Branch reduced Tees, Copper Both End Reduced Tees, Copper Female Branch Tees, Copper Multi Port Female Branch Tees, Copper Stop Ends, Copper Unions, Copper Straight Male Union Connectors, Copper Straight Female Union Connectors.

Xpress copper press-fit suits houses, commercial buildings and industrial plant alike. Joints go together quickly with no flame, and the fittings are designed to work as one complete system.

What the Xpress system offers

• Approved to BS 8537:2010 with BSI Kitemark certification
• Gas rating: -20°C to +70°C
• Gas rating: 5 bar on external above-ground pipework, 1 bar inside buildings
• The Leak Before Press feature makes unpressed fittings show themselves during testing
• A broad list of British and international approvals applies
• Faster to install than traditional jointing, with less labour
• No flame needed, so no hot works permit or extra insurance is required
• Chrome plated fittings in the range suit visible pipe runs

Full gas limits are in the Specification below.

Specification

• Brand: Pegler XPress
• Range: Xpress Copper Gas
• Maker code: SG6; article numbers 39323 (76.1mm x 35mm), 39324 (76.1mm x 42mm), 39325 (76.1mm x 54mm), 39327 (76.1mm x 66.7mm), 39334 (108mm x 42mm), 39335 (108mm x 54mm), 39337 (108mm x 66.7mm), 39338 (108mm x 76.1mm), 39750 (22 x 15mm), 39751 (28 x 15mm), 39752 (28 x 22mm), 39753 (35 x 22mm), 39754 (35 x 28mm), 39755 (42 x 22mm), 39756 (42 x 28mm), 39757 (42 x 35mm), 39760 (54 x 28mm), 39758 (54 x 35mm), 39759 (54 x 42mm), 39319 (66.7 x 28mm), 39320 (66.7 x 35mm), 39321 (66.7 x 42mm), 39322 (66.7 x 54mm)
• Material: Copper
• Connection: Male spigot into a press fitting, press end for the smaller tube
• Sizes: 22 x 15mm, 28 x 15mm, 28 x 22mm, 35 x 22mm, 35 x 28mm, 42 x 22mm, 42 x 28mm, 42 x 35mm, 54 x 28mm, 54 x 35mm, 54 x 42mm, 66.7 x 28mm, 66.7 x 35mm, 66.7 x 42mm, 66.7 x 54mm, 76.1mm x 35mm, 76.1mm x 42mm, 76.1mm x 54mm, 76.1mm x 66.7mm, 88.9mm x 42mm, 88.9mm x 54mm, 88.9mm x 76.1mm, 108mm x 42mm, 108mm x 54mm, 108mm x 66.7mm, 108mm x 76.1mm and 108mm x 88.9mm
• Standard or approval: BS EN 1254-7 (BSI Kitemark KM 789225)
• Max pressure: 5 bar on external above-ground pipework; 1 bar inside buildings subject to fire regulations
• Suitable for: Gas pipework on hard and half-hard copper tube, fitted by a Gas Safe registered engineer
• Max temperature: -20°C to +70°C

Common Questions

How is a gas fitting reducer used?

The larger male end goes into another gas press fitting and the smaller end takes tube.

Can it plug into a water fitting?

No, keep it within the gas range so seals match.

Does it come in large bore?

Yes, reductions from 108mm are listed.
