Pegler XPress SSG14 Gas Stainless Steel Female Elbow 90 Degree 15mm to 28mm
Price range: £27.77 through £48.47 inc VAT ( Price range: £23.14 through £40.39 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.

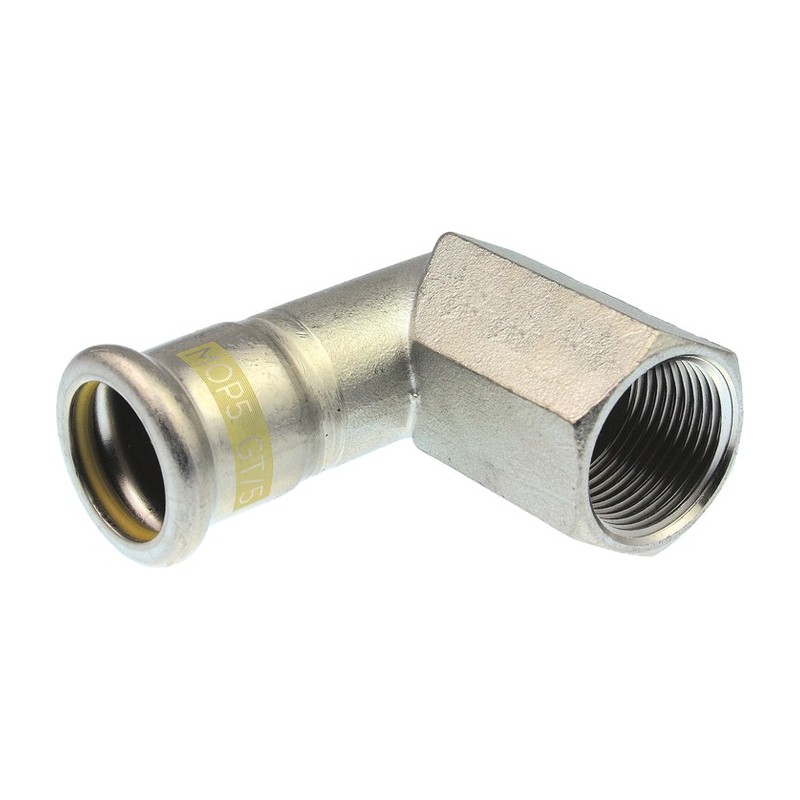

The Pegler XPress 316 Stainless Steel Gas Female Elbow 90 Degree, maker code SSG14, is a 90 degree elbow with a press socket on one end and a BSP parallel female thread on the other for the XPress Stainless Gas press fit system, 15mm to 28mm, with a yellow HNBR sealing ring, rated PN5. Need the XPress 316 Stainless Steel Gas Female Elbow 90 Degree 28mm x 1″ in Glasgow? Collect from our shop at 555 South Street, Glasgow G14 0QX.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| PYSSGE9015DF |
|
15mm x 1/2" | £27.77 inc VAT (£23.14 ex VAT) |
-
+
|
£27.77 inc VAT | ||
| PYSSGE9022EF |
|
22mm x 3/4" | £37.32 inc VAT (£31.10 ex VAT) |
-
+
|
£37.32 inc VAT | ||
| PYSSGE9028FF |
|
28mm x 1" | £48.47 inc VAT (£40.39 ex VAT) |
-
+
|
£48.47 inc VAT |
The Pegler XPress 316 Stainless Steel Gas Female Elbow 90 Degree, maker code SSG14, is a 90 degree elbow with a press socket on one end and a BSP parallel female thread on the other for the XPress Stainless Gas press fit system. We list it in 15mm x 1/2″, 22mm x 3/4″, 28mm x 1″ for gas engineers and mechanical contractors on commercial and industrial gas work in Glasgow and the West of Scotland.
Use it to turn the pipe into a male threaded tail, valve or gas cock. Threaded sizes are listed as pipe size x BSP thread size. Pegler make it in 316L stainless steel (1.4404) with a yellow HNBR O-ring and yellow marking, for natural gas where copper is not suitable, for example where hydrogen sulphide is present. Every size, the XPress 316 Stainless Steel Gas Female Elbow 90 Degree 28mm x 1″ included, can be bought online or over our South Street counter.
XPress uses the M press profile and needs no flame or heat. Mark the insertion depth on the pipe before you push it in, so you know it is fully home before you press.
Couplings, elbows and tees to go with it are in our Pegler XPress 316 stainless steel gas press fit range.
Specification
- Brand: Pegler XPress (VSH, Aalberts IPS)
- Range: XPress Stainless Gas
- Maker code: SSG14; article numbers 11950 (15mm x 1/2″), 11952 (22mm x 3/4″), 11953 (28mm x 1″)
- Type: Female Elbow 90 Degree
- Material: 316 stainless steel, grade 316L (1.4404)
- Seal: Yellow HNBR O-ring, M press profile
- Sizes: 15mm x 1/2″, 22mm x 3/4″, 28mm x 1″
- Max pressure: 5 bar (PN5)
- Temperature: -20°C to +70°C
- Approvals: BSI Kitemark, DVGW Gas, ÖVGW Gas, SVGW Gas, ARGB-KVBG
- Suitable for: Natural gas on XPress 316 stainless steel pipe
Common Questions
What thread is on the SSG14? A BSP parallel female thread (Rp). Threaded sizes are listed as pipe size x BSP thread size.
Is this 304 or 316 stainless steel? 316. Pegler make XPress Stainless Gas fittings in 316L stainless steel (1.4404).
How can I tell a gas fitting from a water one? The gas fittings have a yellow O-ring and yellow marking on the body. Never put a water fitting with a black EPDM ring on a gas line.
Is XPress Stainless Gas approved for gas? Yes. Pegler list it for natural gas at up to 5 bar, with the BSI Kitemark among its approvals. All gas work must be done and tested by a Gas Safe registered engineer.
Do you have the XPress 316 Stainless Steel Gas Female Elbow 90 Degree 28mm x 1″ in stock in Glasgow? Yes. Every size shows In Stock and can be collected from our counter.
Call in at our counter, 555 South Street, Glasgow G14 0QX, or buy online. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm. Tel: 0141 404 5128.
| Size |
15mm x 1/2" ,22mm x 3/4" ,28mm x 1" |
|---|
