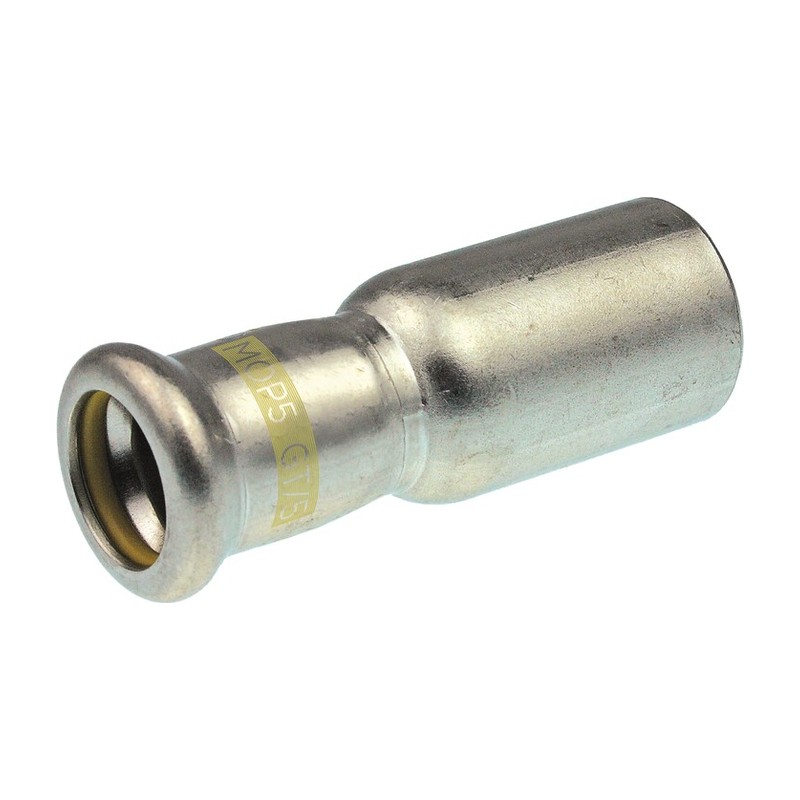

Pegler XPress SSG6 Gas Stainless Steel Reducer 22mm to 108mm

The Pegler XPress 316 Stainless Steel Gas Reducer, maker code SSG6, is a fitting reducer with a male spigot on the larger end and a press socket on the smaller end for the XPress Stainless Gas press fit system. We list it in 22mm x 15mm, 28mm x 15mm, 28mm x 22mm, 35mm x 22mm, 35mm x 28mm, 42mm x 28mm, 42mm x 35mm, 54mm x 28mm, 54mm x 35mm, 54mm x 42mm, 76.1mm x 42mm, 76.1mm x 54mm, 88.9mm x 54mm, 88.9mm x 76.1mm, 108mm x 54mm, 108mm x 76.1mm, 108mm x 88.9mm for gas engineers and mechanical contractors on commercial and industrial gas work in Glasgow and the West of Scotland.

Push the larger end into a press socket of the bigger size and press it, then take the smaller pipe into the other end. Sizes are listed larger end first. Pegler make it in 316L stainless steel (1.4404) with a yellow HNBR O-ring and yellow marking, for natural gas where copper is not suitable, for example where hydrogen sulphide is present. Every size, the XPress 316 Stainless Steel Gas Reducer 108mm x 88.9mm included, can be bought online or over our South Street counter.

XPress uses the M press profile and needs no flame or heat. Mark the insertion depth on the pipe before you push it in, so you know it is fully home before you press.

Couplings, elbows and tees to go with it are in our Pegler XPress 316 stainless steel gas press fit range.

Specification

• Brand: Pegler XPress (VSH, Aalberts IPS)
• Range: XPress Stainless Gas
• Maker code: SSG6; article numbers 11849 (22mm x 15mm), 11851 (28mm x 15mm), 11853 (28mm x 22mm), 11854 (35mm x 22mm), 11855 (35mm x 28mm), 11856 (42mm x 28mm), 11857 (42mm x 35mm), 11858 (54mm x 28mm), 11859 (54mm x 35mm), 11860 (54mm x 42mm), 20491 (76.1mm x 42mm), 20492 (76.1mm x 54mm), 20493 (88.9mm x 54mm), 20494 (88.9mm x 76.1mm), 20495 (108mm x 54mm), 20496 (108mm x 76.1mm), 20497 (108mm x 88.9mm)
• Type: Reducer
• Material: 316 stainless steel, grade 316L (1.4404)
• Seal: Yellow HNBR O-ring, M press profile
• Sizes: 22mm x 15mm, 28mm x 15mm, 28mm x 22mm, 35mm x 22mm, 35mm x 28mm, 42mm x 28mm, 42mm x 35mm, 54mm x 28mm, 54mm x 35mm, 54mm x 42mm, 76.1mm x 42mm, 76.1mm x 54mm, 88.9mm x 54mm, 88.9mm x 76.1mm, 108mm x 54mm, 108mm x 76.1mm, 108mm x 88.9mm
• Max pressure: 5 bar (PN5)
• Temperature: -20°C to +70°C
• Approvals: BSI Kitemark, DVGW Gas, ÖVGW Gas, SVGW Gas, ARGB-KVBG
• Suitable for: Natural gas on XPress 316 stainless steel pipe

Common Questions

How does the SSG6 reducer fit? The larger end is a plain male spigot that goes into another fitting, not onto pipe. The smaller end is a press socket for the smaller pipe.

Is this 304 or 316 stainless steel? 316. Pegler make XPress Stainless Gas fittings in 316L stainless steel (1.4404).

How can I tell a gas fitting from a water one? The gas fittings have a yellow O-ring and yellow marking on the body. Never put a water fitting with a black EPDM ring on a gas line.

Is XPress Stainless Gas approved for gas? Yes. Pegler list it for natural gas at up to 5 bar, with the BSI Kitemark among its approvals. All gas work must be done and tested by a Gas Safe registered engineer.

Do you have the XPress 316 Stainless Steel Gas Reducer 108mm x 88.9mm in stock in Glasgow? Yes. Every size shows In Stock and can be collected from our counter.
