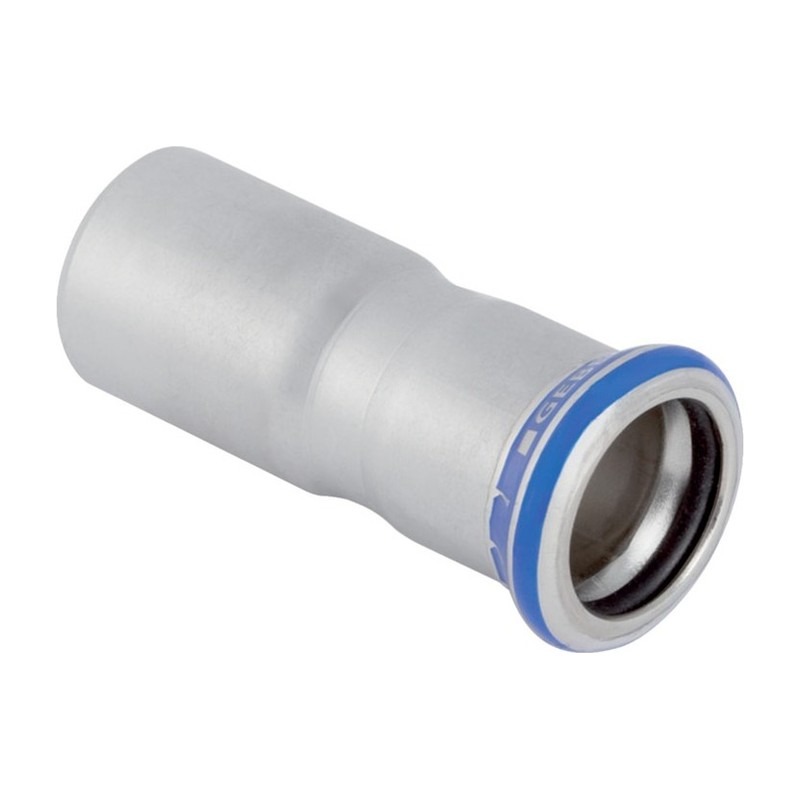

Geberit Mapress Stainless Steel Reducer 15mm to 108mm

The Geberit Mapress 316 stainless steel reducer lets you drop from one pipe size to a smaller one on a pressed stainless run. There is no heat and no threading, just a press tool and the right jaws.

Where a Geberit Mapress 316 stainless steel reducer fits in

Stainless Mapress turns up on commercial jobs, plant rooms and larger buildings. As a main works its way through a building, the pipe size usually comes down, so a reducer is one of the fittings you go through most. The body is CrNiMo 316 stainless steel 1.4401, which stands up well to corrosion.

• Size options run from 22mm x 22mm x 15mm up to 108mm x 108mm x 89mm
• Includes 76mm, 89mm and 108mm combinations as well as the common 22mm to 54mm sizes
• For Mapress stainless system pipe and fittings
• Pressing indicator shows at a glance which joints have been pressed

Square the pipe end, take off the burr, then mark how deep the reducer goes before pushing it on. Then press with tooling that suits Mapress. If a joint gets missed, it leaks on the pressure test, so you find it before the ceilings go up. The size options are listed with three figures, so check the exact outlet sizes against your drawing before you order.

Ordering Mapress reducers in Glasgow

For couplings, bends and tees in the same system, look through our Geberit Mapress 316 stainless steel fittings. You can also buy a Geberit Mapress 316 stainless steel reducer at the counter.

Plumb Parts keeps a trade counter at 555 South Street, Glasgow G14 0QX. Doors open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm, or you can order online any time.

Specification

• Brand: Geberit
• Range: Mapress 316 Stainless Steel
• Material: CrNiMo 316 stainless steel 1.4401 (316)
• Connection: Press Fit (sizes listed as three figures; confirm the code before ordering)
• Sizes: 30 combinations from 22mm x 22mm x 15mm to 108mm x 108mm x 89mm (see the size options)
• Max pressure: 16 bar for drinking water and heating water
• Max temperature: 100°C for drinking water and heating water without antifreeze
• Suitable for: Hot and cold drinking water, heating and cooling circuits, on Mapress 316 Stainless Steel system pipe

Common Questions

Why are the reducer sizes written with three figures?

They are listed the same way as reduced tees, which is unusual for a reducer. Check the Geberit code with us so you get the right fitting.

Does a reducer press onto pipe at both ends?

No. Geberit’s stainless reducer has one pressing socket and one plain spigot, and the spigot slides into another fitting where it gets pressed. Check which end suits your layout before cutting the pipe.

Is it suitable for drinking water?

Yes. The reducer is part of the Mapress 316 Stainless Steel system, which Geberit rate at 16 bar on drinking water supplies, hot or cold.

Datasheets

• Geberit Mapress 316 Stainless Steel Application Overview (Liquid Media) (PDF)
