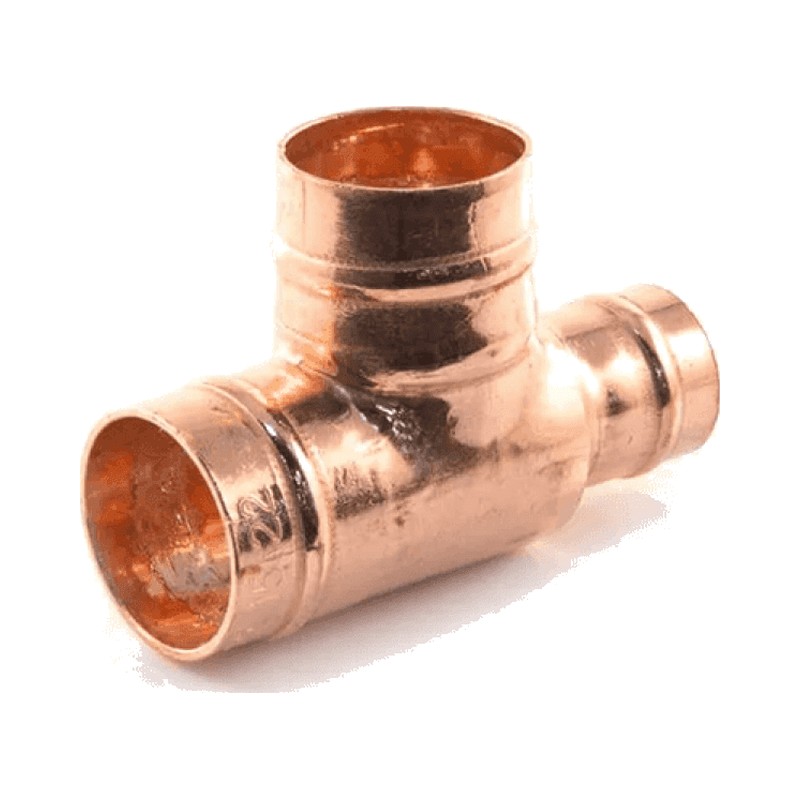

Solder Ring One End Reduced Tee 22mm to 54mm

Solder Ring One End Reduced Tee

The Solder Ring One End Reduced Tee is a copper Solder Ring tee with one end reduced, available in 22mm to 54mm. Solder is built into the fitting, so the joint is made by cleaning, fluxing and heating, with no extra solder needed.

Solder Ring One End Reduced Tee is used to connect a pipe or tube of a smaller diameter at 90 degrees to two tubes of larger diameter.

Solder Ring One End Reduced Tee and Solder Ring Reducing Tee’s are pre-soldered capillary connectors used in plumbing and are ideal when fitting pipes in confined spaces…

To obtain perfect joints, the inside of the fitting and the outside of the copper pipe are cleaned using coarse steel wool, flux paste is applied, the pipe is inserted into the fitting and heat applied from a portable propane torch until a ring of solder shows at the edges of the fitting. To obtain a durable joint, water must not be poured on the solder joint to cool it. Fittings are now made with lead-free solder.

This is a simple and cost-effective method of joining copper tubes to standard EN 1057.
Suitable for use above ground and on hot or cold domestic and commercial systems

The fittings come in a great variety of configurations, such as Tee-pieces, straight couplers, elbows or bends, reducers (to join pipes of different diameters), stop-ends, and there are versions with screw threads (male or female) at one end to fit taps and galvanised iron pipes.

Join copper pipes and tubes with Copper fittings from our range of plumbing fittings available at Plumb Parts to order online or collect from our store in Glasgow.

At Plumb Parts our Solder Ring One End Reduced Tee is available in the following sizes :

22mm x 15mm x 22mm , 28mm x 15mm x 28mm , 28mm x 22mm x 28mm , 35mm x 22mm x 35mm , 35mm x 28mm x 35mm , 42mm x 35mm x 42mm , 54mm x 42mm x 54mm

Our Extended Range of Fittings include:

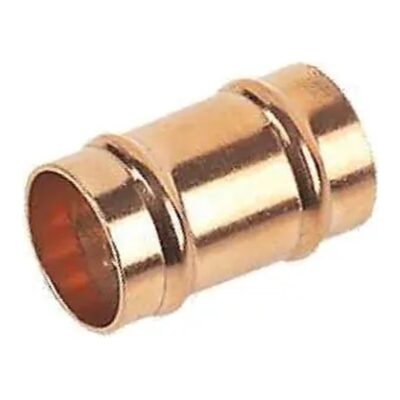

Solder Ring Blow Off Pipe Cowl,    SOlder Ring Part Crossover,    Solder Ring Female Fitting Adaptor,    Solder Ring Male Fitting Adaptor,    Solder Ring Air Vent Cap,    Solder Ring Straight Cylinder Union,   Solder Ring Wall Plate Elbow,    Solder Ring Slip COUPLER,    Solder Ring Female Tee,    Solder Ring Equal Elbow,    Solder Ring Elbow 45 Deg,  Solder Ring Street Elbow,    Solder Ring Female Elbow,    Solder Ring Male Elbow,    Solder Ring Fitting REDUCER,    Solder Ring Long Fitting Reducer,    Solder Ring Stop End,    Solder Ring  COUPLER,    Solder Ring Reducing COUPLER,    Solder Ring Bent Tap Connector,    Solder Ring Straight Tap Connector,   Solder Ring Reducing Tee,    Solder Ring Full Crossover

Our Fitting Sizes include:

8mm, 10mm, 12mm, 15mm, 22mm, 28mm, 35mm, 42mm, 54mm

We also stock a vast range of :

Compression Fittings, End Feed Fittings, and Malleable Iron Fittings

All our Solder Ring Fittings are made from quality Copper to British Standard EN 1254.

Our Solder Ring Fittings can be used for domestic plumbing in your home or for Industrial and Commercial use.

We also stock a wide range of jointing compounds and sundries.

Pick it up from our Glasgow trade counter at 555 South Street, or order online and we will deliver. Browse the full range of Solder Ring fittings.

Specification

• Material: Copper
• Connection: Solder Ring in all sockets
• Sizes: 22mm x 15mm x 22mm up to 54mm x 42mm x 54mm, 7 sizes in the options
• Suitable for: Tees where one end of the run is smaller than the other

Common Questions

What is a reducing tee in plumbing? It’s a tee where the branch is a smaller size than the run. This one takes a smaller pipe off at 90 degrees from two larger pipes.

Do solder ring fittings need flux? Yes. The solder is already in the fitting, but you still clean and flux both the pipe and the fitting for the solder to run properly.

How do you solder ring fittings? Clean the pipe end and inside of the fitting, apply flux and push together. Heat until a bright ring of solder shows all round the mouth, then let it cool on its own without water.

Can you reuse solder ring fittings? It’s best not to, as the solder has already run once the joint has been heated. Fit a new one for a reliable joint.

Are solder ring fittings any good? Yes, they give a neat, reliable joint when the pipe is cleaned and fluxed properly. They’re handy in tight spots, as you don’t need to feed in solder by hand.

What sizes does the one end reduced tee come in? It starts at 22mm x 15mm x 22mm and goes up to 54mm x 42mm x 54mm.
